50Ohm Stainless Steel 2.92mm Type K Male RF Coaxial Connector

K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.

These K-type (2.92mm,SMK) connectors are adopt air interface, which makes them with small in size, light in weight and very reliable in connection, etc.

The high precision 50Ohm coaxial 2.92 mm (Female) connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

Specification:

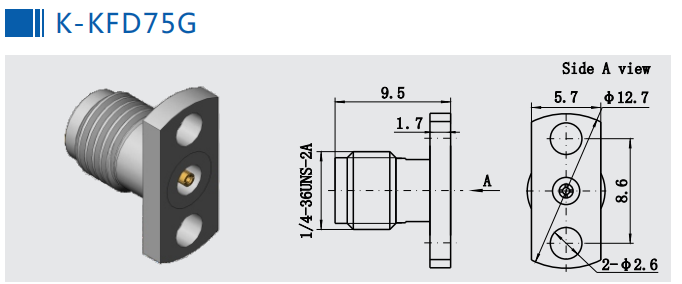

Outline Drawing of 50Ohm Stainless steel 2.92mm Type K Male RF Coaxial Connector(mm):

Features:
• It can mate and interchange with SMA series, K series , 2.4mm, 3.5mm connectors.
• Superior electrical performance up to 40GHz
• It have the advantages of small volume, light weight, high use frequency, reliable connect.
• Great for applications that require high frequency transmission
• Connector mating interface per MIL-STD-348
• Female contacts have unique three-slot construction
• An air dielectric with a loss-loss plastic center conductor support.
• It has the high use frequency, reliable connect.

Application:
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Satcom
* Computer/LANs
* Telecommunications
* Navigation systems
* Research centres
* Satellite communication

Other 2.92mm Male Female RF Connector

2.

3.

4.

g

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!

Product Category:

1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub,MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products

Why Choose Us:

√ 22+ years experience on RF & Microwave Components
√ Qualified components supplier of more than 400 customers
√ Rich cooperation experience with national high tech projects
√ High reliable and commercial grade components for choice
√ Strict quality control under all grade standards in the industry
√ Factory area 75,000 sq.m with 1,000+ experienced staff
√ 500+ national patents with 16 production lines
√ Annual output value above US$300 million
√ 50+ series products with 100,000 types
√ Production Line Capacity: 30,000,000 PCS Per Year
√ Cleaning Workshop: Class 100,000
√ Short delivery and competitive price
√ Custom-made (ODM) orders are welcomed
√ Best-in class products
√ Excellent after-sales service
