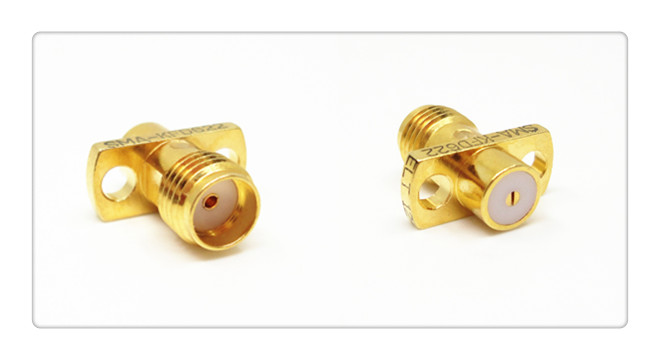

Microstrip Series Female 2 Holes Brass Gold Plated Flange Mount SMA Connector

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMA-KFD622
Certification :	ROHS, ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,000 Pieces Per Month
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

Microstrip Series Female 2 Holes Brass Gold Plated Flange Mount SMA Connector

Female 2 Holes Brass Gold Plated Flange Mount SMA Connector

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

More Detail:

Application:
* Aerospace
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications

* Board-to-board interconnect

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

NOTE:
We have over 10,000 types of SMA RF Connector, if the connector you are using is not found, please contact us with your detai.

Similar Products:

1.50Ohm Brass Female Jack Flange Mount SMA RF Connector

Model No.	L	L1	L2	D	D1	D2	Note
SMA-KFD217a	4	7	6	1.3	4.1	2.2
SMA-KFD746	0	1.1	5.7	1.3	0	2.6
SMA-KFD1197	4	4.5	5.7	1	4.1	2.6
SMA-KFD1304	0	1	5.7	0.8	0	2.2
SMA-KFD1401	3.3	5	5.7	1.3	4.1	2.6

2.SMA Female Right Angle PCB Panel Solder Mount Connector

Model No.	L	L1	Note
SMA-KWHD	13.5	3.9
SMA-KWHD9	11.5	1.9
SMA-KWHD11	15.6	6
