4 Holes Flange Mount 18GHz Female SMA Coax Connector

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMA-KFD1400G
Certification :	ROHS, ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,00 Pieces Per Month
Delivery Time :	Within 3-4 weeks

Add to Cart

Product Details
Company Profile

4 Holes Flange Mount 18GHz Female SMA Coax Connector

SMA RF Coax Connectors Stainless Steel 4 Holes Flange Panel Mount Connectors

SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

Outline Drawing of SMA RF Coax Connectors:

(mm)

Key Features:

1. Broad range with male, female and adapters variants.

2. Using a threaded interface
3. Available in passivation or gold plating
4. Brass and stainless steel material options
5. Wide variety of orientations and PCB terminations
6. Available in straight or right angle versions
7. With bulkhead, 2 holes panel, 4 holes panel or mountless options.
8. Frequency range up to 18GHz Sub-miniature coaxial connector
9. RoHS compliant

Product Cataloge:

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF Connector

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Application:

* Broadband
* Instrumentation

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

* Phased array antennas
* Telecommunications

* Board-to-board interconnect

Related Products

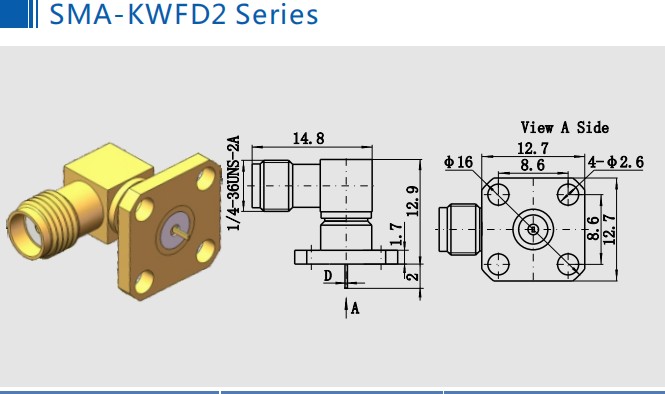

1.SMA Female 4 Holes Flange Mount Right Angle RF Coaxial Connectors

Model No.	D	Note
SMA-KWFD2	0.2*0.5
SMA-KWFD109	0.5*0.2

Model No.	L	L1	L2	Note
SMA-KWFD100	17.1	3	3
SMA-KWFD121	19.9	5.4	3.4

2.SMA Female Right Angle Bulkhead Mount Connrctors for PCB Solder

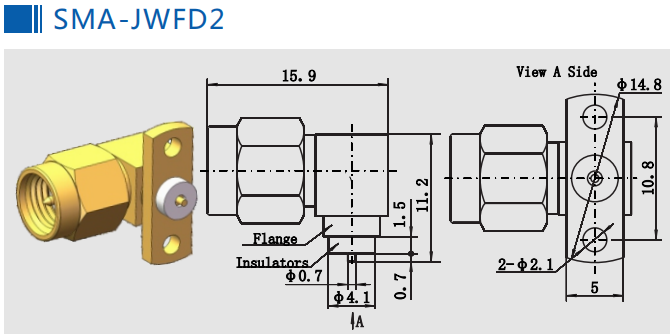

3.SMA Male Right Angle 2 holes Flange Mount Gold Plated RF Connrctors

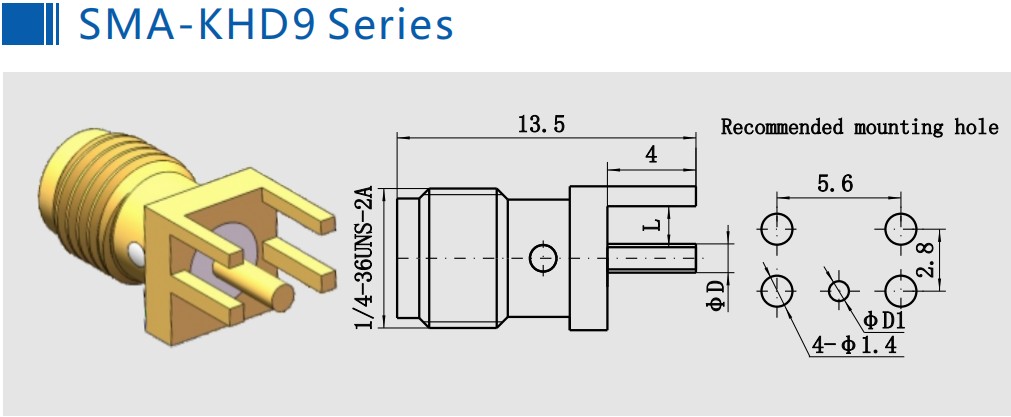

4.SMA Female PCB Panel Solder Mount RF Connectors

Model No.	L	D	D1	Note
SMA-KHD9	2	1.3	1.4
SMA-KHD9A	1.8	0.8	0.9

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
