Electrical SMA RF Connector SMA Female Connector SMA for Aerospace Communication

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMA-KFD76E
Certification :	ROHS, ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,00 Pieces Per Month
Delivery Time :	Within 3-4 weeks

Add to Cart

Product Details
Company Profile

Electrical SMA RF Connector SMA Female Connector SMA for Aerospace Communication

The SMA RF coaxial connector adapter is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.3
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

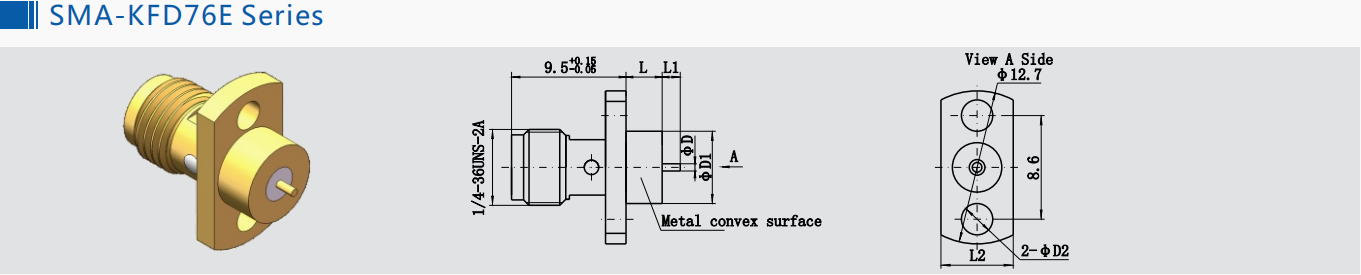

Outline Drawing:(mm)

Model No.	L	L1	L2	D	D1	D2	Note
SMA-KFD76E	3	1.5	6.7	0.6	6	2.2
SMA-KFD183	4	1.5	5.7	0.5	4	2.2
SMA-KFD196	4	0.5	5.7	0.8	4	2.2
SMA-KFD199	4	1.8	5.6	0.8	4.7	2.6
SMA-KFD238	4	2	5.6	0.8	4.1	2.6
SMA-KFD321	4	2.5	5.7	0.5	4	2.6
SMA-KFD456	4	1.7	5.7	0.8	4.8	2.6
SMA-KFD460	4	1.5	5.7	0.8	4	2.2
SMA-KFD556	4	2	5.6	0.6	4.1	2.6
SMA-KFD586	3	1.5	5.7	0.8	4	2.6
SMA-KFD623	3.5	3	5.7	1.3	5.2	2.4
SMA-KFD810	5	2	5.7	0.5	4	2.6
SMA-KFD814	3	2	5.7	0.5	4	2.6
SMA-KFD1151G	4	3.4	5.7	0.7	3.6	1.8	Stainless Steel housing
SMA-KFD1191G	2	2.5	5.7	0.5	4	2.6	Stainless Steel housing
SMA-KFD1322G	3.5	1.5	5.7	0.5	4	2.2	Stainless Steel housing
SMA-KFD5433	7.5	2.5	5.7	0.5	4	2.6

Similar Products:

1.Gold Plated Brass 2 Holes Flange Mount Straight RF Coaxial Connector Jack

Model No.	L	L1	D	D1	D2	Note
SMA-KFD193	4	1.5	0.5*0.2	4	2.2	Terminal flat side is parralled to the long side of the flange
SMA-KFD524	5	2.5	0.5*0.2	4	2.6
SMA-KFD773	4	4	φ1.3*0.2	5.2	2.2
SMA-KFD1207	3.5	5	0.5*0.2	4.1	2.6

2.Hermetically sealed Female SMA RF Conectors

Model No.	Note
SMA(M)-KFD	Hermetic seal SMA female 4-hole flange rf connector

3.SMA Female 4 Holes Flange Mount Right Angle RF Coaxial Connectors

Model No.	D	Note
SMA-KWFD2	0.2*0.5	SMA female right angle 4-hole flange rf connector
SMA-KWFD109	0.5*0.2	SMA female right angle 4-hole flange rf connector

Application:

* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications

* Board-to-board interconnect

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
