Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMA-KFD75
Certification :	ROHS, ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,00 Pieces Per Month
Delivery Time :	Within 3-4 weeks

Add to Cart

Product Details
Company Profile

Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector

1. SMA RF connectors are available in quick connect, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing 2 connectors together with no soldering or crimping required.
3. SMA RF connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling with miniature size, vibration-proof and wide frequency range up to 18GHz .

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

Application:

* Broadband
* Instrumentation

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

* Phased array antennas
* Telecommunications

* Board-to-board interconnect

Product Cataloge:

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF Connector

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

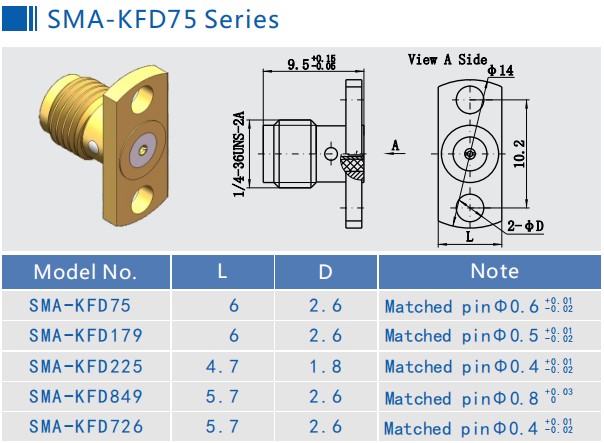

More Detail of Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector:

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
