Gold Plated Glass To Metal Seal Connectors Single Pin 50Ohm RF Feedthroughs

50Ohm RF Feedthroughs Glass to Metal Seals for Electronics Packages Aerospace

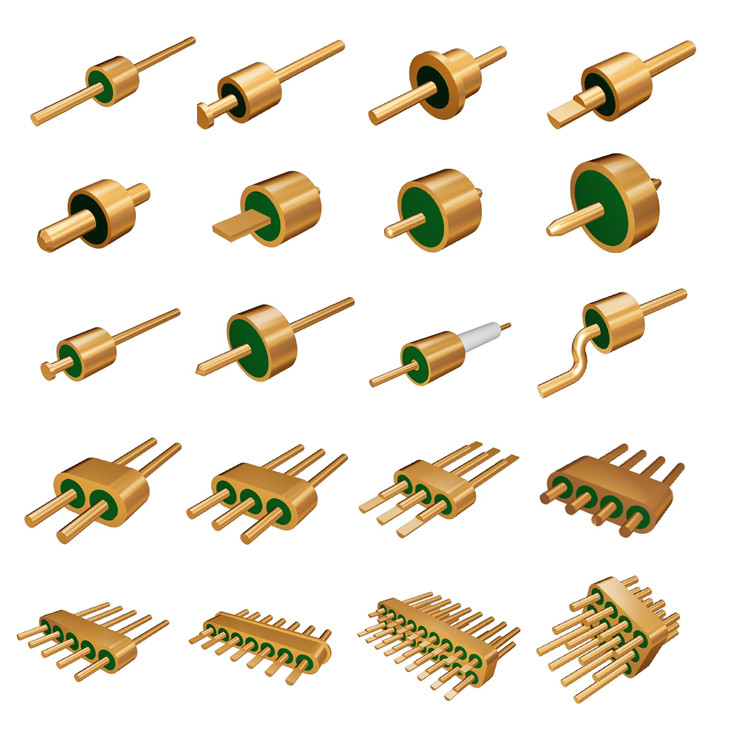

Hermetic Glass to Metal Seals RF/DC Feedthroughs /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.

The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Hermetic Seal Solder Contact 6-pin Feedthroughs Connector

Specification: Catalog-Glass-to-Metal Hermetic Seals.pdf

Product Name	Hermetic Glass to Metal Seals
Model No.	JM2516N
Impedance	50Ohm RF
Type	1 pin
Rows	1 row
Color	Gold plated
Housing and pin material	Kovar 4J29
Glass material Glass Color	7050 or 7070 type or DM308 Green or White
Freqecncy Range	DC~50 GHz
VSWR	≤1.2
Withstand Voltage	≥300V
Hermecity Leak Rate	< 1.01325 X 10^-3 Pacm³/s < 1X 10^-9 mbarl/s < 1 x 10^-9 ccHe/sec @ 1 atm
Insulation Resistance	≥2000MΩ
Operating temperature	-65℃~+260℃

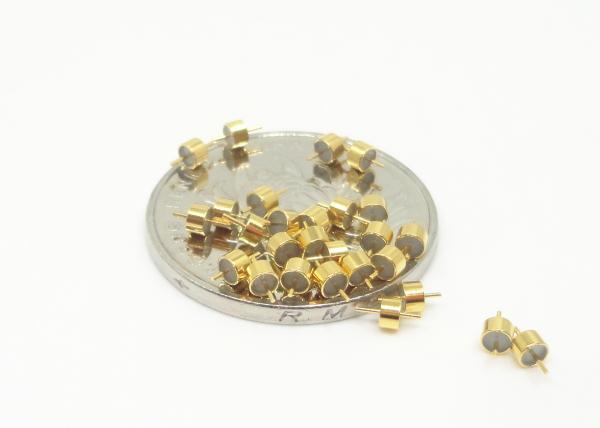

Product Picture of JM2516N:

Detailed Image

Unit(mm)

Product :

Model	A	B	C	d	D	Note
JM2516N	1.6	1.6	5.1	0.38	2.5	M/S
JM2516	1.6	4.6	8	0.4	2.5	M/S
JM2516A	1.6	5	11.6	0.4	2.5	M/S
JM2516B	1.6	1.4	7.1	0.38	2.5	M/S
JM2516C	1.6	1.2	5.3	0.38	2.5	M/S
JM2516D	1.6	1.3	6.1	0.38	2.5	M/S
JM2516-1	1.6	1.2	4.5	0.39	2.5	M/S
JM2516-8	1.6	2.14	7.5	0.3	2.5	M/S
JM2516-14	1.6	1.8	8	0.3	2.5	M/S
JM2516-17	1.6	2	5.6	0.38	2.5	M/S
JM2516-19	1.6	1.2	4.8	0.38	2.5	M/S
M/S=making / soldering NOTE: Above size showed in table is just small part of this RF Single pin Hermetic Glass to Metal Seals. If you need documentation, similar, compatible or replacement products, please contact us.

Advantages:

- Military Grade with 1.27um gold plated

- Strict tolerance control

- Standard and custom design for choice.

- High cost-effective products and services

- Large stocks for standard sizes

- Fast delivery for custom products

Features:

- Small size

- Hermetic

- lightweight

- Stable quality and high reliability

- Inner conductor: Gold wire bonding, soldering and mating method for choice

Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.
