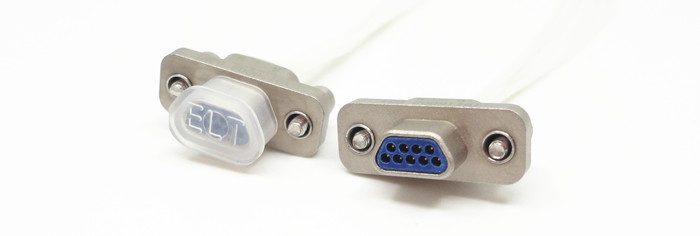

Metal J30J Series Connector / Rectangular J30j Connector With 700mm Cable

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	J30J-9TJSL-700
Certification :	ROHS ISO-9001-2015
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100pcs per week
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

Metal J30J Series Connector / Rectangular J30j Connector With 700mm Cable

J30J MDM Connector Miniaturized Rectangular Micro-D Connector With 700mm Cable

Specification:

Current Rating	3A
Voltage Rating	300V
Insulation Resistance	≥ 5000 MΩ
Durability	500 cycles
Dielectric Withstand Voltage	800
Environmental Temperature	-55℃ ~ + 125℃
Relative Humidity	up to 95% at +40℃
Vibration	10Hz~ 2000Hz 196m/S²
Total acceleration RMS	23.1G
Impact	735m/S²

This series product is equivalent to the American MDM series products, etc, the shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm squared. This product performance comply with GJB2446A( general specification for micro-miniature polarized shell rectangular electrical connectors),it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) . With the small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance, etc. It is widely used in small space required electronic equipment and apparatus.

Contact Arrangements

(Face View of Pin insert)

Metal J30J Series Connector / Rectangular J30j Connector With 700mm Cable

NOTE:

The common connectors include 6 subfamilies: crimp contact connectors, solder contact connectors, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.

J30J-TJ Detailed Drawing:(Unit:mm)

Features:

- 0.635mm,1.27mm,1.91mm contact spacing
- 1, 2, 3 ,4-raw options,

- Twist pin, high contact density

- 9-100contacts
- MIL-DTL-83513 qualification
- Straight, right-angle models choice
- Space and weight saving.
- Excellent resistance to shock and vibration.
- Low contact resistance, high current capability, high dielectric strength.
- Custom designed connectors and cable assemblies.

- The termination style is crimp contact, and the reseau is (row × line) 1.27×2.54.

Types:

- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series

Applications:

- Navigation systems
- Research centres
- Medical applications
- Board to Cable

- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Surface Mount (SMT) Board to Cable

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
