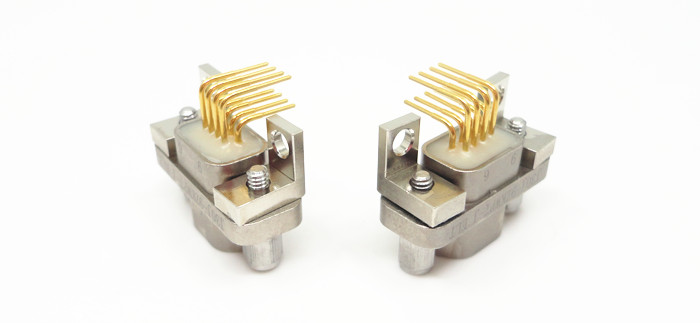

J30J Series Right Angle 9pins Receptacle Miniaturized Rectangular Micro-D Connector

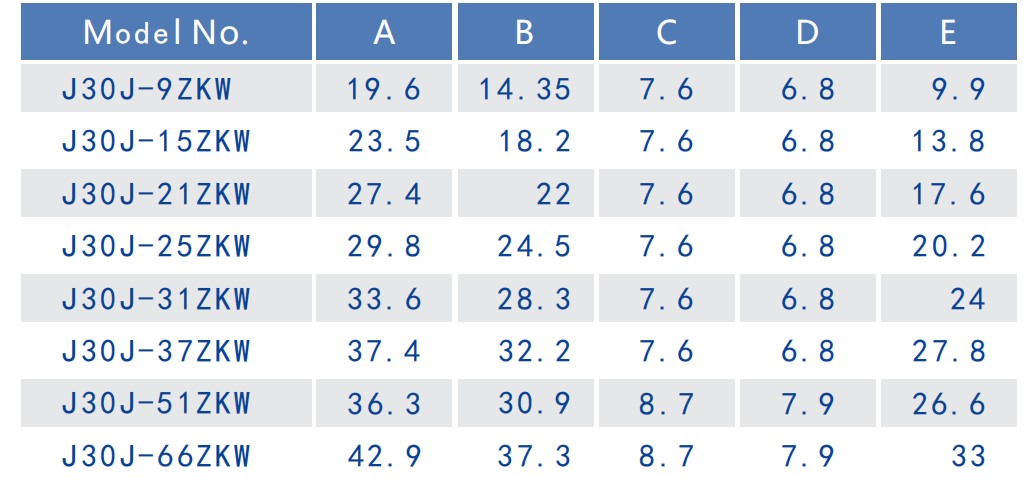

Contact Arrangements

(Face View of Pin insert)

NOTE:

The common connectors include 6 subfamilies: crimp contact connectors, solder contact connectors, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.

Specification:

Current Rating	3A
Voltage Rating	300V
Insulation Resistance	≥ 5000 MΩ
Durability	500 cycles
Dielectric Withstand Voltage	800
Environmental Temperature	-55℃ ~ + 125℃
Relative Humidity	up to 95% at +40℃
Vibration	10Hz~ 2000Hz 196m/S²
Total acceleration RMS	23.1G
Impact	735m/S²
