Receptacle Micro D Connector Rectangular J30j Series 3a Current Rating

Receptacle Micro-D Rectangular J30J Series 9 Pins Connector 500mm 0.1 - 0.15mm² Cable

J30J series product is equivalent to the American MDM series products etc, the shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm squared. This product performance comply with GJB2446A ( general specification for micro-miniature polarized shell rectangular electrical connectors), it is divided to common(shell) and improved(shell) . With the small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance, etc. It is widely used in small space required electronic equipment and instruments.

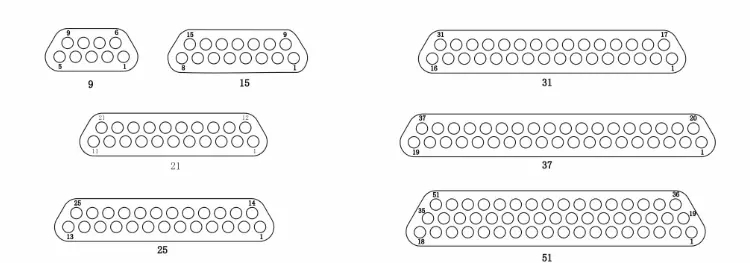

Contact Arrangements (Face View of Pin insert)

Outer Dimension Drawing

Model No.	A	B	C
J30J-9ZK	19.6	14.35	7.6
J30J-15ZK	23.5	18.2	7.6
J30J-21ZK	27.4	22	7.6
J30J-25ZK	29.8	24.5	7.6
J30J-27ZK	33.6	28.3	7.6
J30J-33ZK	37.4	32.2	7.6
J30J-51ZK	36.3	30.86	8.7
J30J-100ZK	54.8	45.72	9.7

Specification:

Voltage Rating	300V
Current Rating	3A
Insulation Resistance	≥ 5000 MΩ
Dielectric Withstand Voltage	800V
Durability	500 cycles
Environmental Temperature	-55℃ ~ + 125℃
Relative Humidity	up to 95% at +40℃
Vibration	10Hz~ 2000Hz 196m/S²
Total acceleration RMS	23.1G
Impact	735m/S²

J30J Series Features:

* Equivalent to the American MDM series products, etc

* Shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm squared.

* J30J connectors comply with GJB2446A, it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) .

* With the small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance, etc

* It's widely used in small space required electronic equipment and apparatus.

* The series of nine products 9,15,21,25,31,37,51,66,100cores.

Applications:

* Avionics, radars
* Missiles and guidance systems
* Telecommunication systems
* Navigation systems
* Research centres

* Military

* GPS

* UAV

* Communications

* Satcom

Packaging Details:

* Standard Export Carton

* According to customers' requirements

NOTE:

We can supply over 1000 types of Miro-D J30J Series connectors, if it is not match with your request,pls contact us.
