Aluminum Alloy J30J Series 9 Pin Receptacle Connector MDM Micro-D connector

Contact Arrangements

(Face View of Pin insert)

NOTE:

The common connectors include 6 subfamilies:

Crimp contact connectors

Solder contact connectors

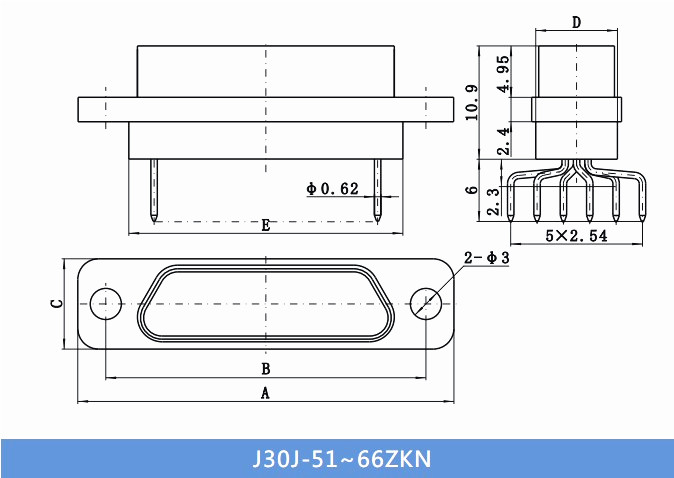

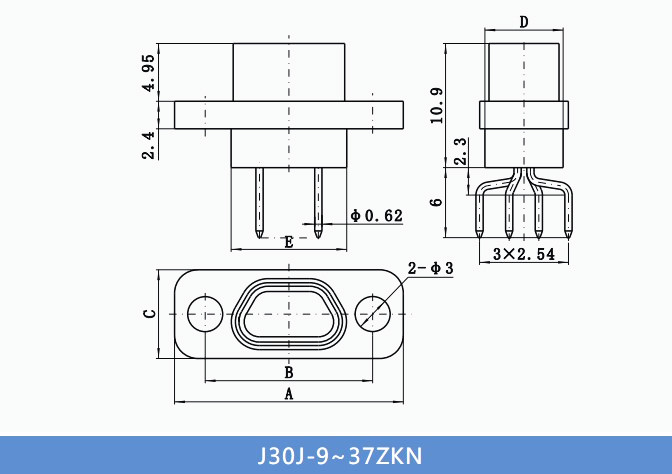

In-line contact for PCB N

In-line contact for PCB N-J

Right angle contact for PCB W

Right angle contact for PCB W-J

Specification:

Current Rating	3A
Voltage Rating	300V
Insulation Resistance	≥ 5000 MΩ
Durability	500 cycles
Dielectric Withstand Voltage	800
Environmental Temperature	-55℃ ~ + 125℃
Relative Humidity	up to 95% at +40℃
Vibration	10Hz~ 2000Hz 196m/S²
Total acceleration RMS	23.1G
Impact	735m/S²
