500 Cycles Durability Rectangular J30j Connector With 500mm AFR250 White Cable

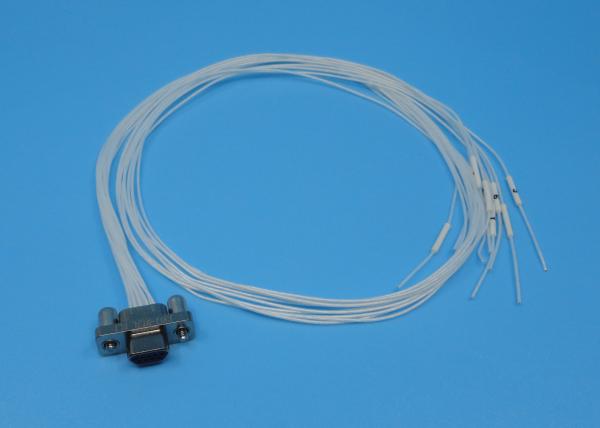

J30J 9 pins Plug Connector Micro Rectangular Connector With 500mm AFR250 White Cable

Specification:

Current Rating	3A
Voltage Rating	300V
Insulation Resistance	≥ 5000 MΩ
Durability	500 cycles
Dielectric Withstand Voltage	800
Environmental Temperature	-55℃ ~ + 125℃
Relative Humidity	up to 95% at +40℃
Vibration	10Hz~ 2000Hz 196m/S²
Total acceleration RMS	23.1G
Impact	735m/S²

This product performance comply with GJB2446A( general specification for micro-miniature polarized shell rectangular electrical connectors),it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) . This series product is equivalent to the American MDM series products, etc, the shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm squared. With the small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance, etc. It is widely used in small space required electronic equipment and apparatus.

Contact Arrangements

(Face View of Pin insert)

500 Cycles Durability Rectangular J30j Connector With 500mm AFR250 White Cable

NOTE:

The J30J series connectors include 6 subfamilies: crimp contact connectors, solder contact connectors, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.

J30J-TJ Detailed Drawing:(Unit:mm)

Features:
- 1, 2, 3 ,4 raw options,

- Twist pin, high contact density

- 9-100contacts
- Space and weight saving.

- MIL-DTL-83513 qualification
- Straight, right-angle models choice
- Excellent resistance to shock and vibration.

- 0.635mm,1.27mm,1.91mm contact spacing
- Low contact resistance, high current capability, high dielectric strength.

- The termination style is crimp contact, and the reseau is (row × line) 1.27×2.54.

Types:
- J30J series
- J30(Plastic) series

- J30JM( Hermetic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series

Applications:
- Navigation systems
- Research centres
- Medical applications
- Board to Cable

- Avionics, radars

- On-board equipment
- Telecommunication systems
- Missiles and guidance systems
- Surface Mount (SMT) Board to Cable

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
