High Reliable 50Ohm N Male to SMA Male RF Adapter

N-type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11GHz typical frequency range. Our frequency range can be up to 18GHz. They are applicable to different types of RF cables and commonly adopted in aviation, aerospace, radar, microwave and digital communications, test and measurement instrument etc.

RF SMA is a kind of coaxial connector that is widely applied, with small sized thread coupling. Characteristic impedance is 50Ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.

Specifiacation:

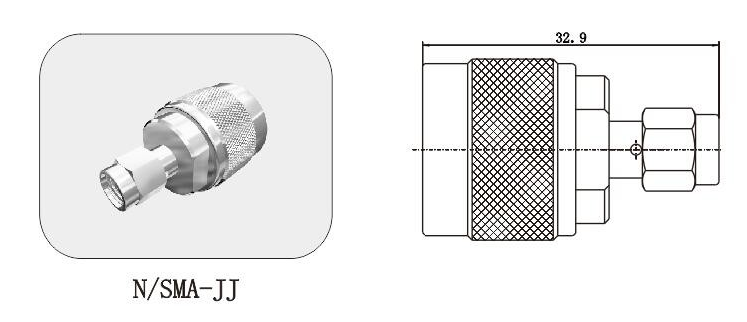

Detailed Drawing(mm)

We also can provide below N/SMA adaptors:

Application:

* Instrumentation
* Antennas
* Microwave Radio
* Surge Protection
* Telecommunications

Product Category:

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
