Gold Plated SMPM RF Connector Rf Coaxial Connector 50Ω Impedance

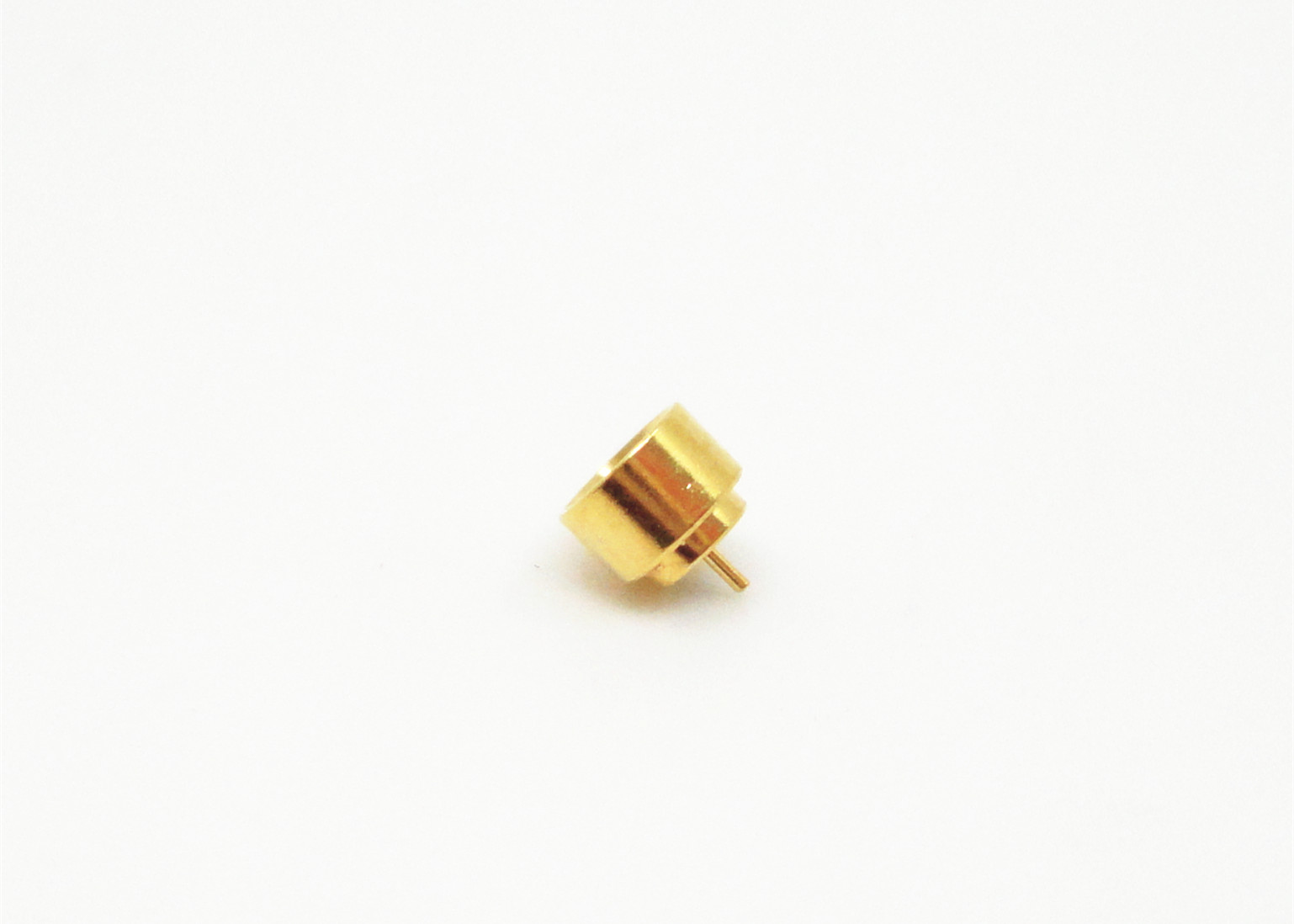

Gold Plated SMPM Staight Rf Coaxial Solder SSMP Connector with Glass Bean

SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole. The SMPM for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation telecommunication systems

Material & Mechanical Characteristics:

Center Conductor:

Male: Sn-P Bronze/Kovar, Gold plated

Female: Beryllium bronze, Gold plated

Elastic Contact:Beryllium bronze Gold plated

Body and other Metal Parts: Brass/Kovar with Gold plated

Insulators: Glass sintering/PTFE/PEI

Product Drawing:

Features:

1, SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connector.

2, The size is smaller than the SMP design, so it is widely used in telecommunication systems

3, SMPM series includes PC-mount, straight and right-angled, .047 cabled connectors, and sealable flange-mounts.

4, All male connectors are offered as full-detent or smooth bore designs for your preference of separation forces.

Gold offers the following main advantages:

-- Excellent wettability/solderability

-- Excellent protection against corrosion

-- Low contact resistance

-- Good wear resistance

Application:

* Aerospace

* Board-to-board interconnect

* Broadband

* Antennas

* Military

* Instrumentation

Certificate:

Delivery time:

* If the warehouse have, we can delivery it in severial days, or 4~8weeks after receiving the deposit.It depends on the quantity ordered.

Min. Order:

If the production are in our stock warehouse.No MOQ for it, or the MOQ will be 10pcs.

NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
