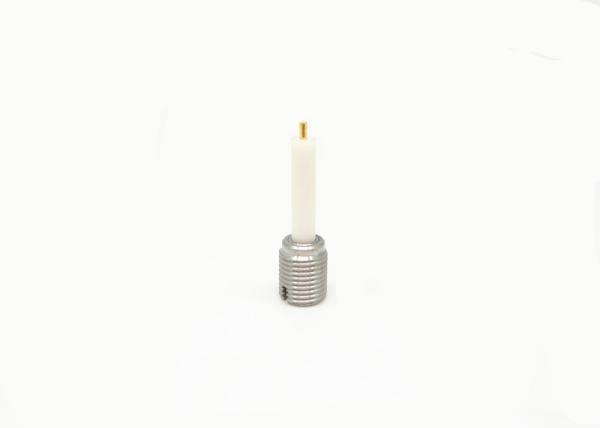

Passivated Stainless Steel SMP Male Thread-In Mount Connector with Extended Insulator

SMP is a sminiature push-on RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz, and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density.

Applications

- Aerospace

- Broadband

- Telecommunications

- Instrumentation

- Wireless
- Antennas
- Phased array antennas

- Board-to-board interconnect

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Detailed Drawing

Features and Benefits

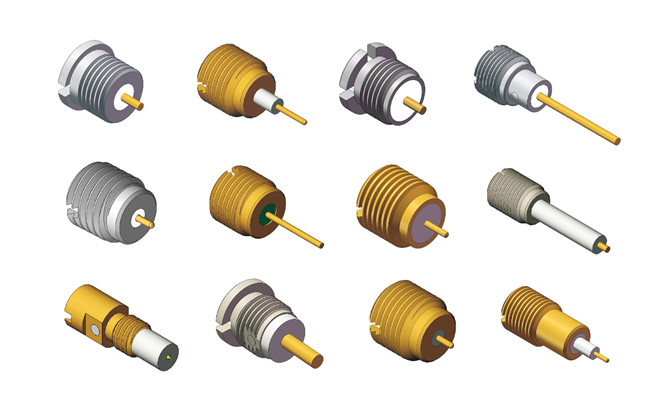

Related SMP Male Tread-in Mount Connector

Product Cataloge:

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
