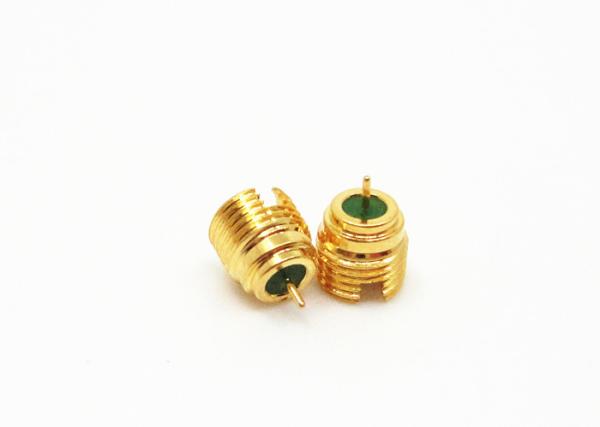

    Male Crimp Straight SMPM RF Connector Mini SMP With Glass Bean 50Ω Impedance

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : SSMP(M)-JYD13
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1,000,000pcs per month
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

    Male Crimp Straight SMPM RF Connector Mini SMP With Glass Bean 50Ω Impedance

    SMPM Male Crimp Straight RF Coaxiall Connector Mini SMP with Glass Bean


    SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole. the plug has three interface form full detent, limited detent and smooth bore(including with braking).PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density.Apply for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation Telecommunication systems.


    Specification:
    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~50GHz
    Rated Voltage170VRMS*
    Dielectrics Voltage-resistance500VRMS*
    Insulation Resistance≥2000MΩ
    Center ResistanceOuter conductorNormal≤3.5mΩ, Sealing≤5mΩ
    Center conductorNormal≤8mΩ, Sealing≤30mΩ
    DC~18GHz18~26.5GHz26.5~40GHz40~50GHz
    VSWR≤1.25≤1.3≤1.4≤1.5
    Material & Mechanical Characteristics
    Center ConductorMaleSn-P Bronze/Kovar, Gold plated
    FemaleBeryllium bronze, Gold plated
    Elastic ContactBeryllium bronze Gold plated
    Shell and other Metal Parts

    Brass/Kovar Gold plated
    Stainless steel Passivation

    InsulatorsGlass sintering/PTFE/PEI
    Hermetic Product Leakage Rate≤1.01325×10-3Pa·cm3/s

    Features and Benefits:

    Temperature rating: -65℃ to +125℃

    35% smaller size than the SMP connectors

    • Performance up to 50 GHz

    • Allows for axial and radial misalignment (blind mate applications)

    • Excellent reliability where extreme shock & vibration conditions are experienced


    Product Drawing:


    NOTE: Hermetic


    Application:

    * Network
    * Satcom
    * Automotive
    * Jump line join
    * Basic facility
    * Radar,microwave
    * Computer/LANs


    Advantages:

    √ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500 experienced workers with over 10 production line
    √ Specializes in manufacturing RF connector more than 15 year
    √ Have long and rich cooperation experience with national project components supply like China ShenZhou 9
    √ With our own factory with 35,000㎡
    √ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
    √ Competitive price
    √ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
    √ Monthly average turnover is 10million
    √ Custom-made (ODM) orders welcome here
    √ We are committed to providing high-quality products to customers

    Factory& Production Line:



    NOTE:
    We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your detai
