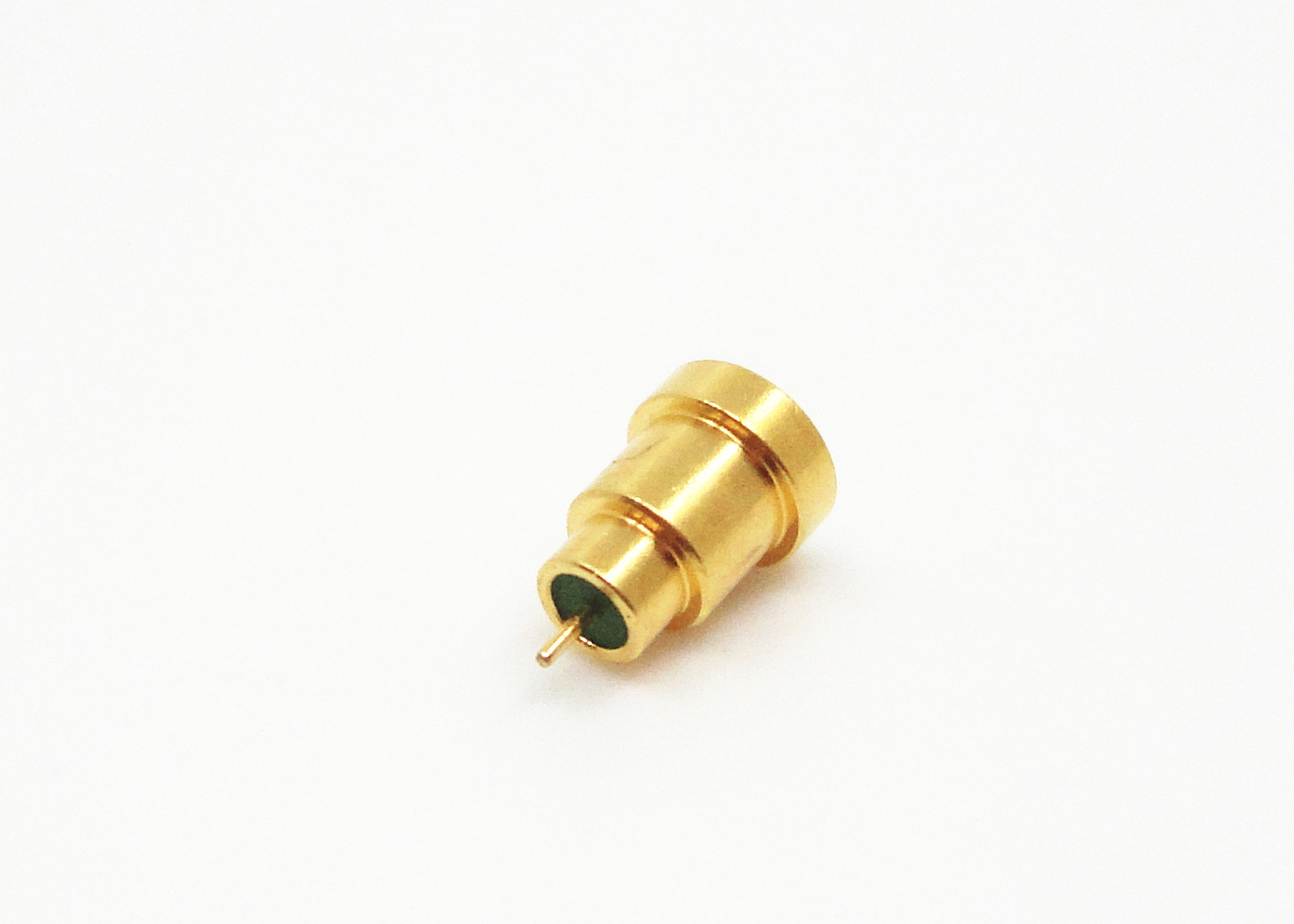

Gold Plated Hermetic Seal Male Straight Blind Mate RF Coaxial Connector SMPM

SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole.

The plug has three interface form-full detent, limited detent and smooth bore(including with braking).PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density.Apply for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation Telecommunication systems

Features

• 35% smaller size than the SMP connectors
• Higher frequency range, the performance up to 65 GHz
• Allows for axial and radial misalignment (blind mate applications)
• Excellent reliability where extreme shock & vibration conditions are experienced.
• Gold plated

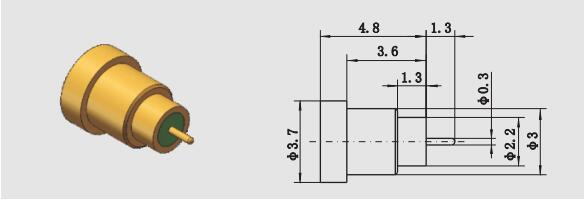

Product Drawing:

NOTE: Meshing depth 2.11

Application:

* Aerospace

* Board-to-board interconnect

* Broadband

* Instrumentation

* Phased array antennas

* Telecommunications

Advantages:

√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500 experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 15 year
√ Have long and rich cooperation experience with national project components supply like China ShenZhou 9
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers

Factory& Production Line:

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
