    Gold Plated Hermetically Sealed SSMP Male Smooth Bore Connector for PCB SMPM

    Gold Plated Hermetically Sealed SSMP Male Smooth Bore Connector for PCB SMPM


    SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole.

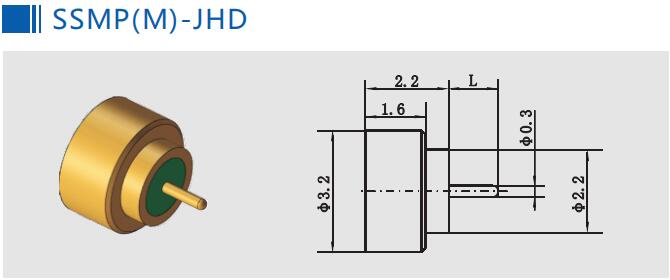

    Iterface Dimension:
    Specification:
    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~50GHz
    Rated Voltage170VRMS
    Dielectrics Voltage-resistance500VRMS
    Insulation Resistance≥2000MΩ
    Center ResistanceOuter conductorNormal≤3.5mΩ, Sealing≤5mΩ
    Center conductorNormal≤8mΩ, Sealing≤30mΩ
    DC~18GHz18~26.5GHz26.5~40GHz40~50GHz
    VSWR≤1.25≤1.3≤1.4≤1.5
    Material & Mechanical Characteristics
    Center ConductorMaleSn-P Bronze/Kovar, Gold plated
    FemaleBeryllium bronze, Gold plated
    Elastic ContactBeryllium bronze Gold plated
    Shell and other Metal Parts

    Brass/Kovar Gold plated

    Stainless steel Passivation

    InsulatorsGlass sintering/PTFE/PEI
    Hermetic Leakage Rate≤1.01325×10-3Pa·cm3/s

    Features

    •35% smaller size than the SMP connectors

    •Performance up to 50 GHz

    •SMPM is a interface with a blind mate snap-on microminiature connector

    •Excellent reliability where extreme shock & vibration conditions are experienced


    NOTE:1, L=1.3mm 2,Smooth Bore 3,Hermetic 4, Engagement depth 1.4


    Application:


    * Optoelectronic modules


    * Satcom,Network


    * Automotive


    * Basic facility


    * Radar, microwave subsystems


    * Computer/LANs
