Gold Plated SMPM RF Connector Male Straight Blind Small Size High Precision

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SSMP(M)-JHD77
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	1,000,000pcs per month
Delivery Time :	goods in stock:1000pcs

Add to Cart

Product Details
Company Profile

Gold Plated SMPM RF Connector Male Straight Blind Small Size High Precision

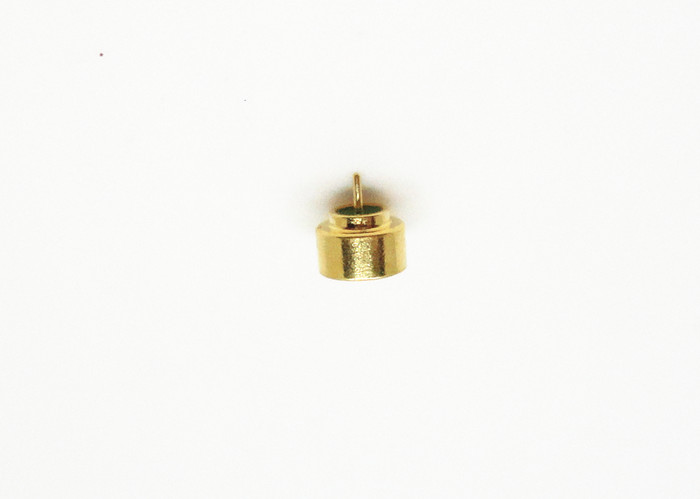

Gold Plated Male Straight Blind Mate RF Coaxial Connector with Glass Bean SMPM

SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole.

Application:

* Network

* Satcom

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Computer/LANs

Iterface Dimension:

Specification:

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤3.5mΩ, Sealing≤5mΩ
	Center conductor		Normal≤8mΩ, Sealing≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Features

• SMPM(SSMP) is 35% smaller size than the SMP connectors with light weight.

• The frequency range is up to 50 GHz. SMPM is easy integration into the antenna.

• Allows for axial and radial misalignment (blind mate applications)

• Temperature rating: -65℃ to +125℃

• Excellent reliability where extreme shock & vibration conditions are experienced.

Certificate :

Factory& Production Line:

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.

Product Tags:

smpm coaxial connector

small coax connectors
