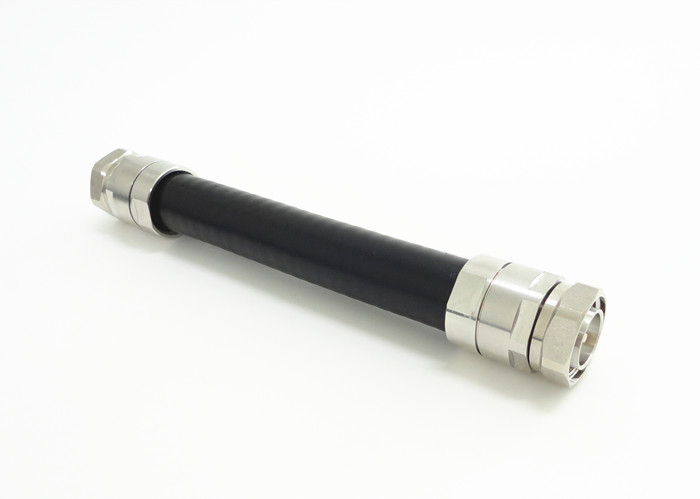

7/16 DIN Straight Male O-Ring Compression Sealing RF Connector for 7/8" Coaxial Cable

The 7/16 series name derives from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. These connectors provide superior performance for both return loss and intermodulation distortion (IMD).

These connectors are very robust, extremely stable and mostly with waterproof specifications, making them ideal for applications where vibration resistance and environmental protection is important. Because they are designed to minimize signal distortion from intermodulation, 7/16 connectors are especially suitable for base stations and broadcast communication systems.

Product Specification:

Electrical Characteristics

Material & Mechanical Characteristics

Product Features:

• RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
• Our custom RF cable assemblies are built-in and shipped worldwide
• RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
• RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
• If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
• RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U

Purchasing of ready-made microwave cable assembly lines provides important benefits:

• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality

Assembly shop capability:

*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking
