SMP Female RF Coaxial Connector With Microstrip For PCB Mount

SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz), and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.

Specification

* maximum sea-level
Features and Benefits
* Can terminate to coax, PCB (printed circuit board), shroud or terminal;
* Can be male or female gender with 50ohm impedance;
* Body can be straight or right angle;
* Mount Method can be bulkhead, 2-hole panel or mount-less;
* Attachment methods include solder, crimp/solder, or solder/solder;
* Body is brass or stainless steel.

Applications
- Military
- Antennas
- Broadband
- Aerospace

- Broadband

- Telecommunications

- Instrumentation

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

-Quantum Computing

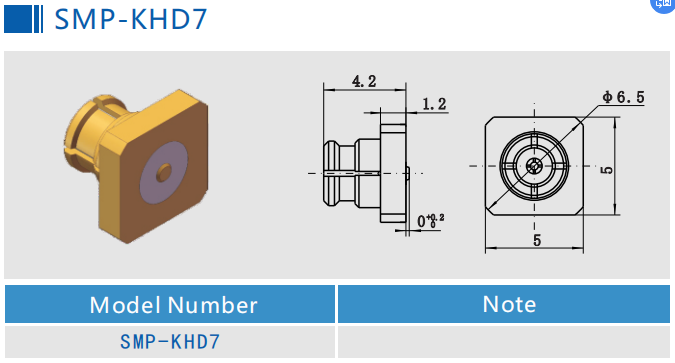

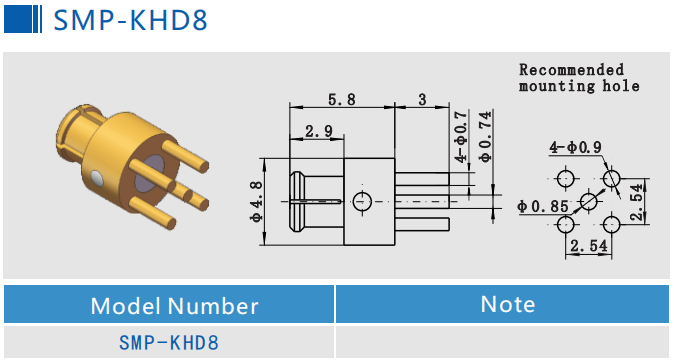

Detailed Drawing

Related Micro Strip Connector (KHD series):

1.

2.

3.

4.

5.

6.

Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:

*The frequency range you need.
*Power requirement.
*Connector type
*Your special requirements if you have (VSWR, temperature, size, etc.)

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
