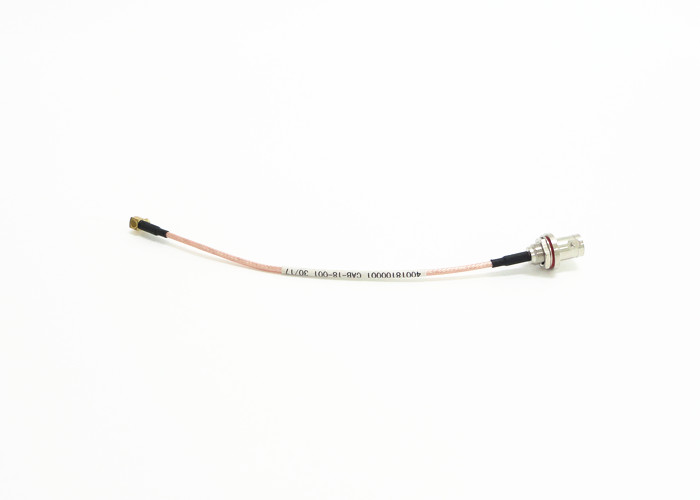

50Ohm BNC Female to MCX Male Right Angle RF Cable Assemblies Wire
Harness Assembly
Xi'an Elite Electronic of RF cable assemblies features outstanding
electrical performance, low loss and high frequency. The range
includes flexible, semi-rigid, corrugated and hand-formable cable
assemblies with a combination of RF cables and connectors optimized
for each market or application. Custom RF cable assemblies are also
available.
This is flex cable assembly, with the characteristics of light
weight, low loss,good mechanical phase stability, the phase change
of the cable varies with the temperature is small, apply to the
occasion with strict temperature variation and phase. It’s mainly used in avionics, phased array radar, microwave RF
device.
Specifiacation:
| Electrical Characteristics |
| Frequency Range | 0~3GHz |
| VSWR | ≤1.3 |
| Characteristic Impedance | 50ohm |
| Dielectric Withstanding Voltage | ≥1500VRMS,50Hz, at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Center conductor | ≤1.5mΩ |
| Outer conductor | ≤0.2mΩ |
| Material & Mechanical Characteristics |
| Body | Brass CuZnSn/Ni Plated |
| Temperature Range | -40-+85℃ |
| Center conductor | Brass Au Plated Beryllium-copper Au Plated |
| Durability | Mating cycles ≥500 |
| Insulator | PTFE |
Application:
* Computer/LANs
* Phased array radar
* Instrumentation
* Radar,microwave
* Telecommunications
* Instrumentation
Industral:
-Aerospace
-Defense
-Rail
-Medical
-Space
-Telecom
-Industrial
-Test & Measurement
Detailed Drawing
Purchasing of ready-made microwave cable assembly lines provides
important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Advantages:
√ Rich selection of connector
(BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),
more than 500
experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 16 yearS
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers
√ Have long and Rich cooperation experience with national project
components supply like China ShenZhou 9
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK
ect. with short delivery
√ Competitive price
Product Cataloge:
| RF Adapter |
| MCX/MMCX RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| N Type RF Connector |
| Microwave Rotary Joints |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of Cable Assemblies, if the connector you are using is not found, please contact us
with your details.
