4.3-10 Male RF Coaxial Connector Straight Clamping Connectors 50Ω Impedance

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	4.3-10
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	1,000,000 Pieces Per Month
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

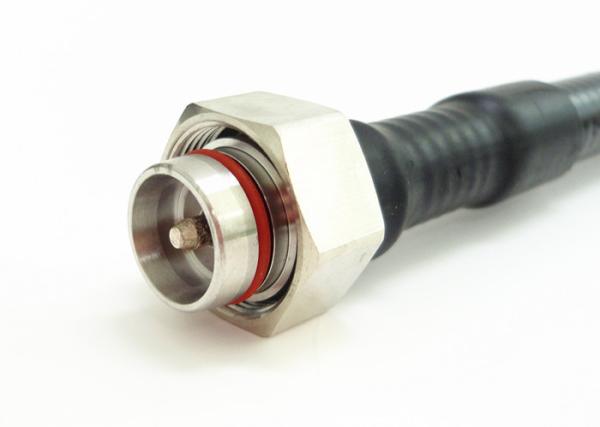

4.3-10 Male RF Coaxial Connector Straight Clamping Connectors 50Ω Impedance

4.3-10 Male RF Coaxial Connector Straight Clamping Connectors with 1/2 Supersolf Cable

Xi'an Elite Electronic of RF cable assemblies features outstanding electrical performance, low loss and high frequency. The range includes flexible, semi-rigid, corrugated and hand-formable cable assemblies with a combination of RF cables and connectors optimized for each market or application. Custom RF cable assemblies are also available.

4.3-10 connectors offer the same, robust design as 7/16 connectors but are smaller and up to 40% lighter, allowing for much more dense, lighter weight applications. Separate electrical and mechanical components yield very stable PIM performance regardless of coupling torque, allowing for easier installation. Silver plated contacts and White Bronze plated bodies offer a high-degree of conductivity, corrosion resistance, and durability.

We can customize various type 4.3-10 cable assemblies as per customers' different requirement.

Product Specification:

Electrical Characteristics

Impedance	50Ohm
Frequency range	DC~6GHz
3rd Order IM Product@2×20Watts	-163, typical -167
Insertion Loss	≤0.10dB
Seal	IP67
Salt Spray	96H
VSWR	0 < f ≤1.0 GHz: 1.02 (40.1) 1.0 < f ≤ 2.7 GHz: 1.03 (36.6) 2.7 < f ≤ 3.7 GHz: 1.06 (30.7) 3.7 < f ≤ 5.0 GHz: 1.08 (28.3) 5.0 < f ≤ 6.0 GHz: 1.25 (19.1)
Vibration Test Method	MIL-STD-202, Meth. 204, Cond. A
Dielectric Withstanding Voltage	2500V rms
Insulation resistance	≥10000MΩ

Material & Mechanical Characteristics

Center Conductor	Phosphor Bronze, Silver Plating
Spring Connector	Sleeve Beryllium Silver Plating
Insulators	PTFE
Body	Brass Ternary Alloy Plating
Other Metal Parts	Brass, Alloy Plating
Gasket	Silicone Rubber

Product Features:

* The interface according to IEC 60169-4

* Good shielding performance

* Low VSWR;Low attenuation

* Low power consumption with high transmitting power

* With waterproof structures IEC 169, IP67

* Perform exceptionally well in multi-channel cellular systems where power levels approximate 100 watts per channel

* Low PIN and low VSWR for improved system performance

* Silver plated contacts and silver or white bronze plated bodies deliver high conductivity and corrosion resistance

Applications:

* Computer/LANs

* Base Station

* Automotive

* Basic facility

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Radio, TV aerial system

Industral:

-Aerospace

-Defense

-Rail

-Medical

-Space

-Telecom

-Industrial

-Test & Measurement

Purchasing of ready-made microwave cable assembly lines provides important benefits:

• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality

Assembly shop capability:

*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking
