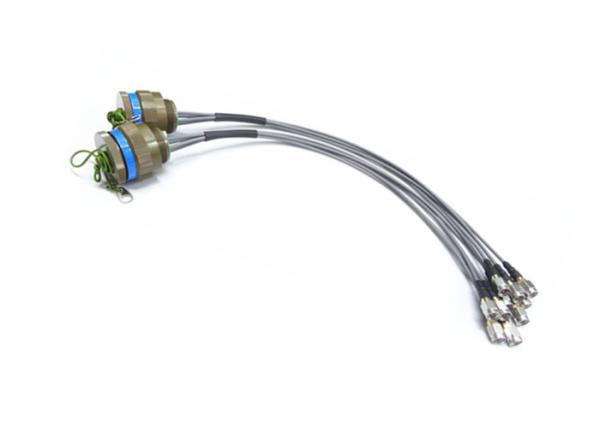

SMA Male RF Integrated Connector RF Coaxial Cable Assemblies RG506
This SMA RF integrated connector cable Assembly is combine with our company self-made precision
connector connect HUBER+SUHNER flexible soft cable connectors, with
characteristics of wide bandwidth,low loss, good homogeneity, It’s
mainly used in avionics, phased array radar, microwave RF device.
Specifiacation:
| Electrical Characteristics |
| Characteristic Impedance | 50ohm |
| VSWR | ≤1.3 |
| Frequency Range | 0~3GHz |
| Dielectric Withstanding Voltage | ≥1500VRMS,50Hz, at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Center conductor | ≤1.5mΩ |
| Outer conductor | ≤0.2mΩ |
| Material & Mechanical Characteristics |
| Body | Brass CuZnSn/Ni Plated |
| Insulator | PTFE |
| Center conductor | Brass Au Plated Beryllium-copper Au Plated |
| Durability | Mating cycles ≥500 |
| Suitable for cable | RG506 |
| Temperature Range | -40-+85℃ |
Application:
* Computer/LANs
* Instrumentation
* Radar,microwave
* Telecommunications
* Instrumentation
* Basic facility
* Base Station
* Outdoor facilities
* Radio, TV aerial system
* Mobile communication
Detailed Drawing
Advantages:
√ Rich selection of connector
(BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),
more than 500
experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 16 yearS
√ Have long and Rich cooperation experience with national project
components supply like China ShenZhou 9
√ With our own factory with 35,000㎡
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK
ect. with short delivery
√ Competitive price
√ We are committed to providing high-quality products to customers
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| Glass-to-metal Hermetic Seals |
| N Type RF Connector |
| Microwave Rotary Joints |
| BNC RF ConnectorMillimeter |
| RF Cable Assemblies |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| J30J Series Connector |
| Waveguide To Coaxial Adapter |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us
