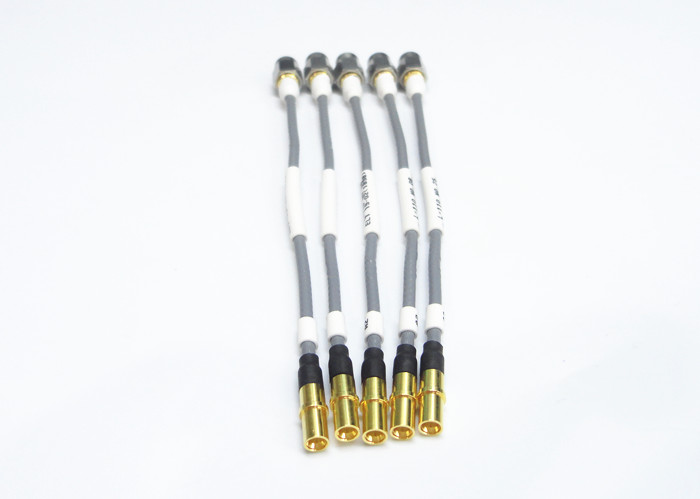

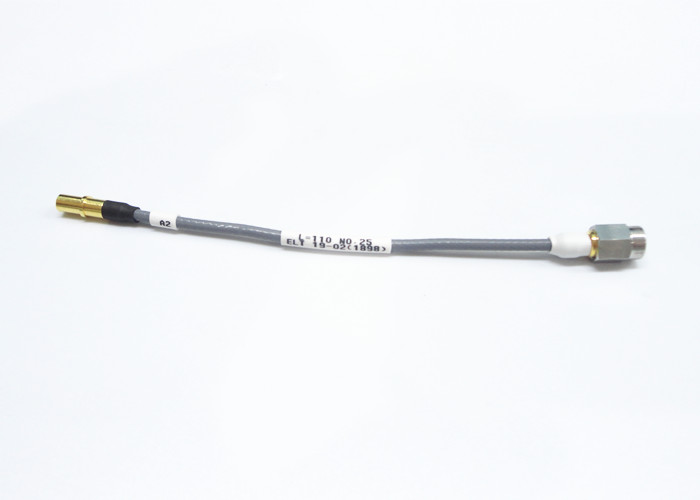

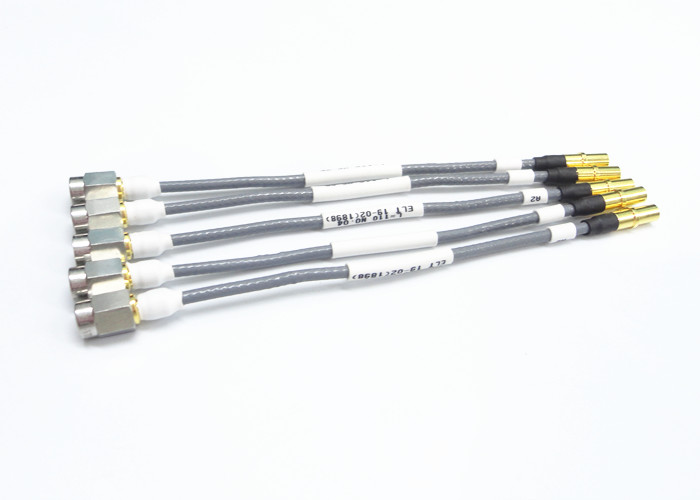

SSMA Male to SSMP Male Coaxial RF Cable Assemblies with CXN3506
Cable
This SSMA cable Assembly is combine with our company self-made
precision connector connect HUBER+SUHNER flexible soft cable
connectors, with characteristics of wide bandwidth,low loss, good
homogeneity, It’s mainly used in avionics, phased array radar,
microwave RF device.
Xi'an Elite Electronic of RF cable assemblies features outstanding
electrical performance, low loss and high frequency. The range
includes flexible, semi-rigid, corrugated and hand-formable cable
assemblies with a combination of RF cables and connectors optimized
for each market or application. Custom RF cable assemblies are also
available.
Specifiacation:
| Electrical Characteristics |
| Frequency Range | 0~3GHz |
| Characteristic Impedance | 50ohm |
| VSWR | ≤1.3 |
| Dielectric Withstanding Voltage | ≥1500VRMS,50Hz, at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Center conductor | ≤1.5mΩ |
| Outer conductor | ≤0.2mΩ |
| Material & Mechanical Characteristics |
| Body | Brass CuZnSn/Ni Plated |
| Durability | Mating cycles ≥500 times |
| Center conductor | Brass Au Plated Beryllium-copper Au Plated |
| Insulator | PTFE |
| Temperature Range | -40-+85℃ |
Application:
* Computer/LANs
* Mobile communication
* Instrumentation
* Base Station
* Instrumentation
* Basic facility
* Radio, TV aerial system
* Phased array radar
* Microwave RF device
* Outdoor facilities
* Radar microwave
* Telecommunications
Detailed Drawing
Purchasing of ready-made microwave cable assembly lines provides
important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Advantages:
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers
√ Specializes in manufacturing RF connector more than 16 yearS
√ Have long and Rich cooperation experience with national project
components supply like China ShenZhou 9
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK
ect. with short delivery
√ Rich selection of connector
(BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),
more than 500
experienced workers with over 10 production line
Product Cataloge:
| RF Adapter |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| SMA/SSMA RF Connector |
| RF Cable Assemblies |
| BNC RF ConnectorMillimeter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| SMP/SSMP RF Connector |
Packaging & Delivery:
* According to customers' requirements
NOTE:
We have over 10,000 types of cable Assembly, if the connector you are using is not found, please contact us
with your details.
