RF Cable Connector Female Jack SMA Coax Connector for RG316

The specifications below are general specifications for all sma connectors. Specific specifications for VSWR, insertion loss and RF leakage for each connector is available from our factory upon request.

SMA series is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume, good bandwidth, superior electrical characteristics. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

Material & Mechanical Characteristics:

Environmental Specification:

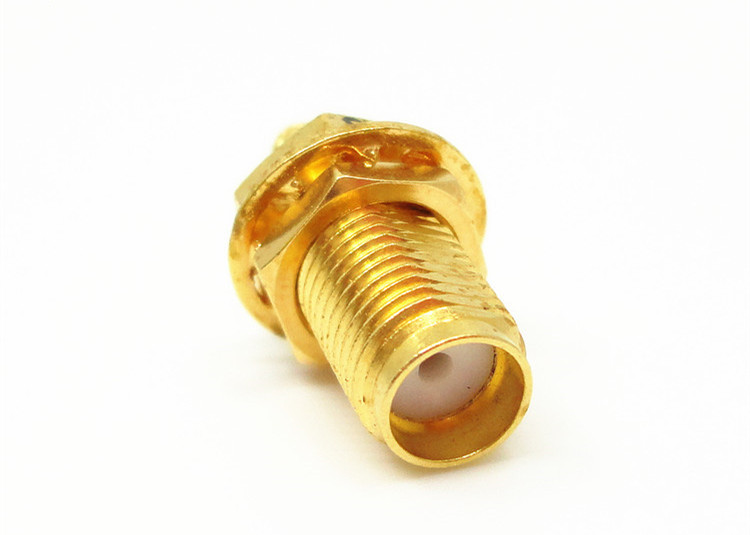

Product Detail of SMA Coax Connector for RG316:


Features of SMA RF Connector:

1, SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations
2, SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required
3, SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
4, SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20GHz)

Application:
* Broadband
* Instrumentation
* Antennas
* Telecom
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications

* Board-to-board interconnect

Product Cataloge:

NOTE: We have over 4000 types of interconnect products, if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!

Product Category:

1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub,MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products
