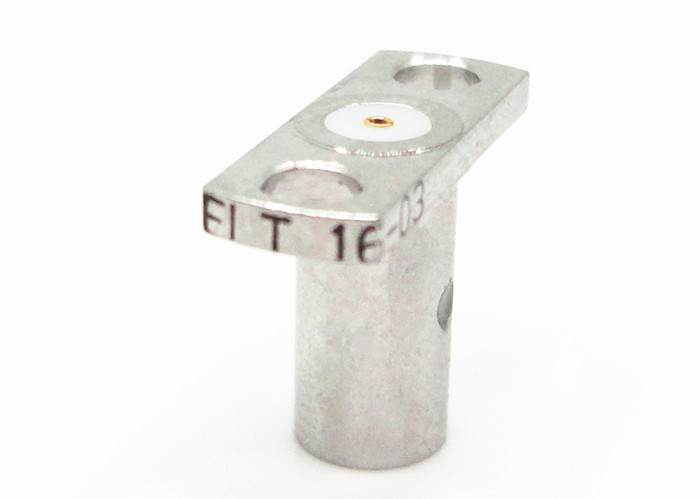

Female 2 Holes Flange Mount SMP RF Connector Coaxial Connector for
Microwave
SMP is a sminiature push-on or snap coupling RF coaxial connector,
which has the characters of small size, light weight, excellent
seismic performance, and widely working broadband,etc. Its
operating frequency up to 30GHz (our product of SMP connector can
reach 40GHz), and the plug has three interface form-full detent,
limited detent and smooth bore(including with braking). PCB mount,
cable mount and in-series adaptors provide an interconnect solution
for board-to-board, blind mate and rack-and-panel applications
while maintaining package density. Apply for the install situation
with the requirement of high reliability modular intensive.
Specification
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170VRMS* |
| Insulation Resistance | ≥2000MΩ |
| Dielectrics Voltage-resistance | 500VRMS* |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s |
Advantages:
1. SMA RF connector is high quality and quick combinations by
simply screwing two connectors together, with no soldering or
crimping required
2. SMA electrical connectors are widely used for microwave,
antennas and testing instrumentation etc
3. SMA RF connector are threaded-coupling RF coaxial connectors
with miniature size, vibration-proof and wide frequency range up to
18 GHz
4. SMA RF connectors are available in quick connect, push-on or
standard interface, straight, 90 degrees versions,as well as
bulkhead, or 4 holes panel configurations
Applications
- Antennas
- Broadband
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
Detailed Drawing
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us
