40GHz Female SMP RF Connector Straight Board to Board Coax Connector

SMP is a miniature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz) and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.

Specification

Features and Benefits

Applications

- Antennas

- Medical

- Broadband

- Telecommunications

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

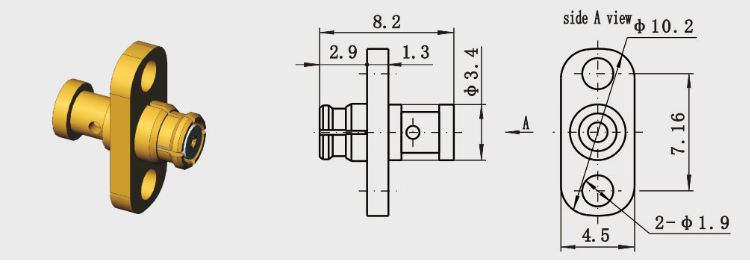

Detailed Drawing

Product Cataloge:

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
