    Female Straight SMA RF Coaxial Connector Gold Plated Crimping Cable Connector

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : SMA-K3
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000 Pieces Per Month
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

    Female Straight SMA RF Coaxial Connector Gold Plated Crimping Cable Connector

    Female Straight SMA RF Coaxial Connector Gold Plated Crimping Cable Connector

    SMA series is a kinds of high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.


    Electrical Specification :

    Impedance50Ω
    Frequency RangeDC~18GHz
    Rated Voltage335VRMS*
    Dielectrics Voltage-resistance1000VRMS*
    Insulation Resistance≥5000MΩ
    Center ResistanceCenter Conductor≤3.0mΩ
    Outer Conductor≤2.0mΩ
    VSWR≤1.3

    Mechanical Specification:

    Center ConductorMaleBrass Gold plated
    FemaleSn-P Bronze Gold plated
    Elastic ContactBeryllium bronze Nickel plated
    Shell and other Metal PartsBrass Nickel plated
    Stainless Passivation
    Crimping SleeveBrass Nickel plated
    Tightening torque of connection0.79-1.13N .m
    Durability500 cycles
    Sealing RingSilicone Rubber
    InsulatorsPTFE

    Advantages:

    √ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500

    experienced workers with over 10 production line

    √ Specializes in manufacturing RF connector more than 16 yearS

    √ Have long and Rich cooperation experience with national project components supply like China ShenZhou 9

    √ With our own factory with 35,000㎡

    √ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery

    √ Competitive price

    √ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE

    √ Monthly average turnover is 10million

    √ Custom-made (ODM) orders welcome here

    √ We are committed to providing high-quality products to customers


    Features:

    1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
    2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
    3. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations
    4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz)

    More Pictures of

    Female Straight SMA RF Coaxial Connector Gold Plated Crimping Cable Connector(mm):


    Model NumberDescription
    SMA-K3SMA female crimp rf connector

    Related SMA RF Connector(mm):

    1.

    Model NumberDescription

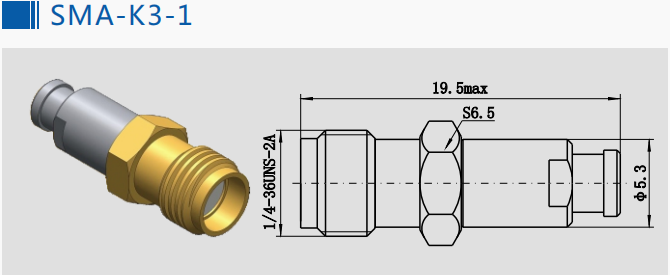

    SMA-K3-1SMA female rf connector

    2.

    Model NumberDescription

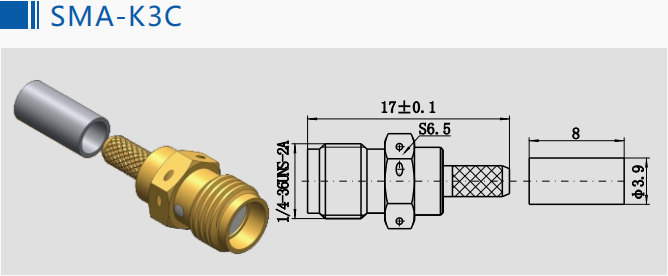

    SMA-K3CSMA female rf connector

    NOTE:
    We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
