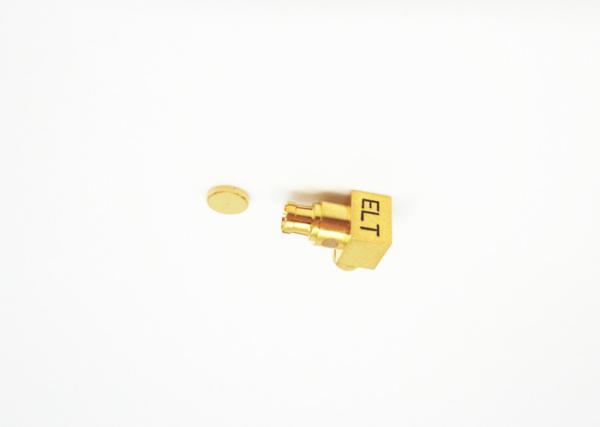

    50Ohm Female Right Angle SMPM RF Connector Gold Plated Coaxial Mini SMP Connector

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : SSMP
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1,000,000pcs per month
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

    50Ohm Female Right Angle SMPM RF Connector Gold Plated Coaxial Mini SMP Connector

    50Ohm Female Right Angle SMPM RF Connector Gold Plated Coaxial Mini SMP Connector

    SMPM is a miniature push-on RF coaxial connector, which have the characters of small size(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting and the plug has two interface form with full detent and unthreaded hole.

    Specification
    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~50GHz
    Rated Voltage170VRMS*
    Dielectrics Voltage-resistance500VRMS*
    Insulation Resistance≥2000MΩ
    Center ResistanceOuter conductorNormal≤3.5mΩ, Sealing≤5mΩ
    Center conductorNormal≤8mΩ, Sealing≤30mΩ
    DC~18GHz18~26.5GHz26.5~40GHz40~50GHz
    VSWR≤1.25≤1.3≤1.4≤1.5
    Material & Mechanical Characteristics
    Center ConductorMaleSn-P Bronze/Kovar, Gold plated
    FemaleBeryllium bronze, Gold plated
    Elastic ContactBeryllium bronze Gold plated
    Shell and other Metal Parts

    Brass/Kovar Gold plated

    Stainless steel Passivation

    InsulatorsGlass sintering/PTFE/PEI
    Hermetic Product Leakage Rate≤1.01325×10-3Pa·cm3/s

    Features

    •35% smaller size than the SMP connectors

    •Allows for axial and radial misalignment (blind mate applications)

    •Performance up to 65 GHz

    •Excellent extreme shock & vibration ability

    Application:


    * Automotive

    * Jump line join

    * Basic facility

    * Network

    * Satcom

    * Computer/LANs

    * Outdoor facilities

    * Instrumentation

    * Radar,microwave

    * Telecommunications

    * Mobile communication


    Product Cataloge:

    RF Adapter
    Waveguide to Coaxial Adapter
    Glass-to-metal Hermetic Seals
    J30J Series Connector
    Microwave Rotary Joints
    RF Cable Assemblies
    SMA/SSMA RF Connector
    SMP/SSMP RF Connector
    MCX/MMCX RF Connector
    TNC RF Connector
    N Type RF Connector
    BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

    NOTE:
    We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your detai
    ls.
