Female Right Angle SMP RF Connector Miniature 2 holes Flange Mount

SMP is a subminiature push-on(snap coupling) RF coaxial connector which has the characters of small volume, light weight, excellent seismic performance and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.

Specification

Features and Benefits

Product Cataloge:

Applications

- Antennas
- Broadband

- Wireless

- Instrumentation
- Board-to-board interconnect
- Phased array antennas
- Telecommunications

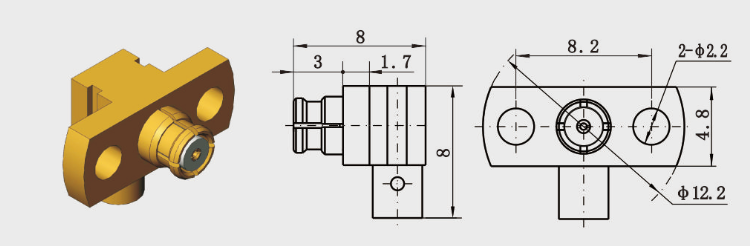

Detailed Drawing

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
