Straight SMPM RF Small Coax Connectors , Miniature RF Connectors Brass Material

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SSMP-KB2
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	1,000,000pcs per month
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

Straight SMPM RF Small Coax Connectors , Miniature RF Connectors Brass Material

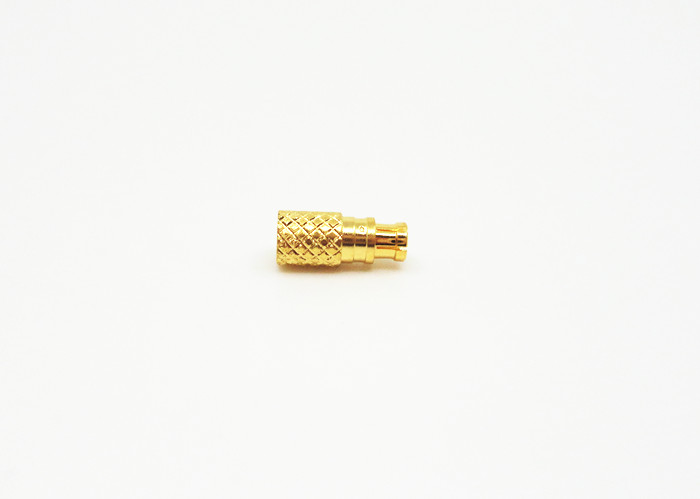

Coaxial Connector Straight SMPM RF Connector Socket Mini SMP Female

SMPM is a miniature push-on RF coaxial connector, which have the characters of small size(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤3.5mΩ, Sealing≤5mΩ
	Center conductor		Normal≤8mΩ, Sealing≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Features

•Performance up to 65 GHz

•35% smaller size than the SMP connectors

•Allows for axial and radial misalignment (blind mate applications)

•Excellent reliability where extreme shock & vibration conditions are experienced

Application:

* Network

* Satcom

* Computer/LANs

* Mobile communication

* Base Station

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system

Product Cataloge:

RF Cable Assemblies

RF Adapter

Waveguide To Coaxial Adapter

J30J Series Connector

Microwave Rotary Joints

Glass-to-metal Hermetic Seals

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF Connector

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
