RF Gold Plated Solder SMA Male Straight Coax Connector

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMA-JFB05A
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,000 Pieces Per Month
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

RF Gold Plated Solder SMA Male Straight Coax Connector

SMA series is a kind of mini high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume, good bandwidth, superior electrical characteristics. SMA is the most widely used RF coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

Specification:

Electrical Characteristics
Impedance		50Ω
Frequency Range		Connect with solf cable DC~12.4GHz
		Connect with semi-rigid cable DC~18GHz
Rated Voltage		335VRMS
Dielectrics Voltage-resistance		1000VRMS
Insulation Resistance		≥5000MΩ
Center Resistance		Center Conductor	≤3.0mΩ
		Outer Conductor	≤2.0mΩ
VSWR		≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Insulators		PTFE
Sealing Ring		Silicone Rubber
Durability		500 cycles
Tightening torque of connection		0.79－1.13N .m

Features:

1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required

2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc

3. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead ,or 4 holes panel configurations

4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz)

Application:

* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications

* Board-to-board interconnect

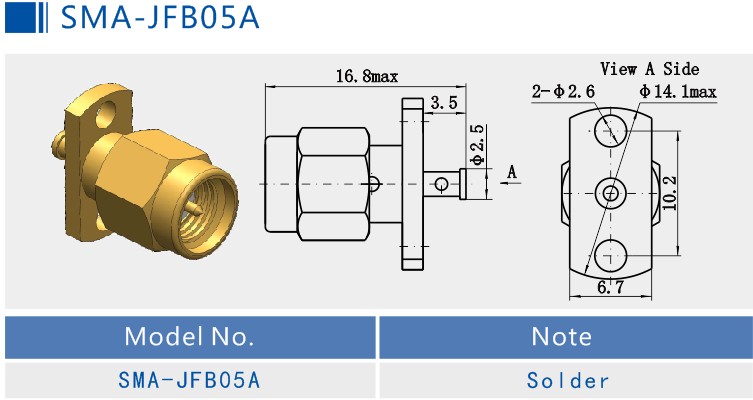

More Detail of

RF Gold Plated Solder SMA male Straight Coax Connector :

Product Cataloge:

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
