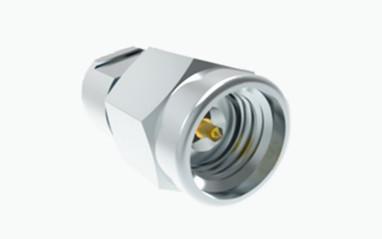

K2.92mm Male Stainless Steel Passivated RF Connector for MF30A Cable

Product Drawing:


Electrical Characteristics
Note:The specific data of the model are based on the data in the product specification sheet.

Product Features:
1. Size Specification: It has an outer conductor inner diameter of 2.92mm, which makes it particularly advantageous in space-limited applications due to its compact size.
2. Characteristic Impedance: The 2.92mm connector possesses a 50Ω characteristic impedance, which is the standard for RF coaxial connectors and helps ensure efficient and stable signal transmission.
3. Electrical Performance: It offers excellent electrical performance, maintaining low reflection and low loss at high frequencies, which is crucial for signal integrity.
4. Reliability: Thanks to its design and material selection, the connector is extremely reliable and suitable for use in demanding environments such as test and measurement, as well as high-frequency microwave modules.
5. Compatibility: It can be interchanged with SMA series and 3.5mm connectors using an air interface, providing flexibility and ease of integration with other components or systems.

Application:
1. Satellite Communications: In the field of high-frequency satellite communications, 2.92mm connectors are used for signal transmission between antennas and receivers.
2. Test and Measurement Equipment: Within the test and measurement industry, particularly for high-frequency signal testing equipment, these connectors are favored due to their compact size and high performance.
3. Point-to-Point Communication Systems: In point-to-point communication systems requiring high-speed data transfer, 2.92mm connectors help to enhance the efficiency and quality of signal transmission.

Our Company:


NOTE:
We can supply over 1000 types of RF connectors, if it is not match with your request,pls contact us.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
