    Staight PCB Circuit Board MMCX Small Coaxial Cable Connectors 50Ω Impedance

    Gold Plated 50 ohm MMCX Staight PCB Panel Mount Crimp RF Coaxial Connector

    MMCX series is a kind of micro insertion stop RF coaxial connector which is smaller than MCX, widely used in the small communication devices and network devices that strict requirements for volume and weight.

    Applications of the MMCX connectors are those where size, weight, performance and ease of assembly are the driving considerations to the final design decision. Typically, these include GPS, wireless communications (WLAN and mobile) and automotive.


    Staight PCB Circuit Board MMCX Small Coaxial Cable Connectors 50Ω Impedance

    Specification


    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~6GHz
    Rated Voltage170VRMS
    Dielectrics Voltage-resistance500VRMS
    Insulation Resistance≥2000MΩ
    Center ResistanceCenter Conductor≤10mΩ
    Outer Conductor≤5mΩ
    VSWR≤1.3
    Material & Mechanical Characteristics
    Center ConductorMaleBrass Gold plated
    FemaleBeryllium bronze Gold plated
    Elastic ContactBeryllium bronze Gold plated
    Shell and other Metal PartsBrass Gold plated
    Crimping SleeveBrass Nickel plated
    InsulatorsPTFE
    Sealing RingSilicone Rubber
    Durability500 cycles
    RoHS CompliantYes
    Centre Contact TerminationCrimp
    Outer Contact TerminationCrimp
    Mating Cycles500Cycles
    Contact Retention10N min
    Cable Retention100N min
    Mating Force13.6N max
    Un-Coupling Force13.6N max

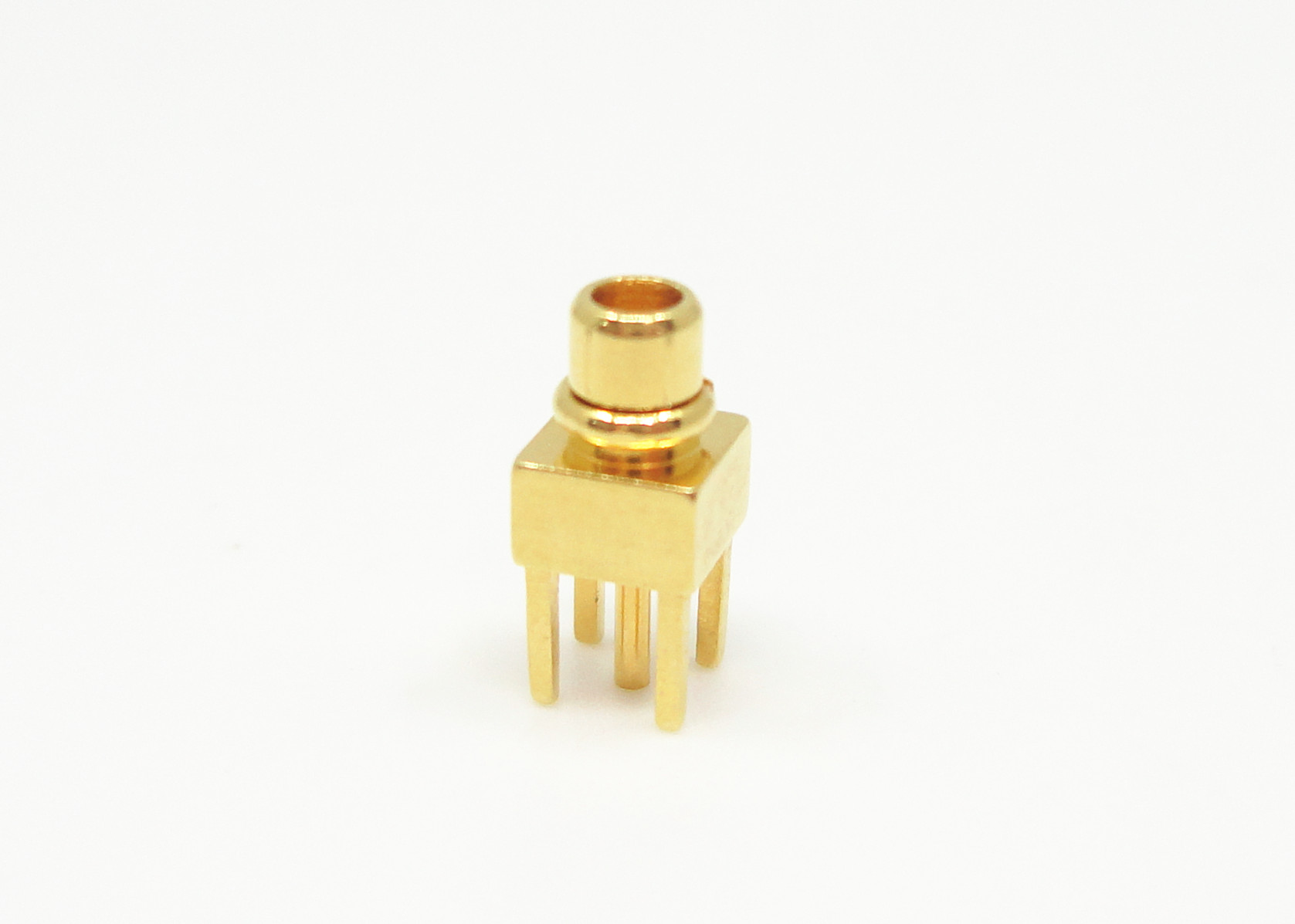

    Detailed Images
    Staight PCB Circuit Board MMCX Small Coaxial Cable Connectors 50Ω Impedance

    Features:


    -Low cost combined with high quality.

    -Broadband performance with low reflection from DC to 6 GHz.

    -Quick connect/disconnect snap-on mating.

    -50 Ohm impedance

    - Available for affixement to industry standard cable and as a printed circuit board device

    -Provide repeatable performance


    Application:


    * Network

    * Satcom

    * Computer/LANs

    * Computer/LANs

    * Mobile communication

    * Instrumentation

    * Mobile communication

    * Outdoor facilities

    * Radar,microwave

    * Telecommunications

    * Instrumentation

    * Automotive

    * Jump line join

    * Basic facility

    * Radio, TV aerial system
