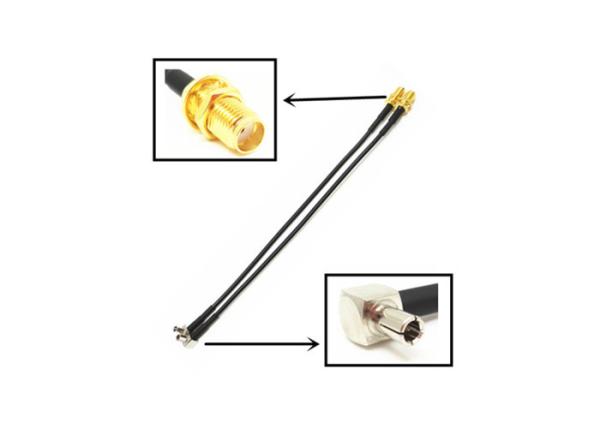

SMA Female Right Angle RF Cable Assemblies RG174/U Gold Plated

This cable Assembly is combine with our company self-made precision connector connect flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device.

Our SMA Female Right Angle RF Cable Assemblies uses a flexible cable type that is 50 Ohm. BMA Female cable assembly is constructed with RG174/U.

Specifiacation:

Application:

* Computer/LANs

* Mobile communication

* Instrumentation

* Base Station

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Radio, TV aerial system

* Mobile communication

Industral:

-Aerospace

-Defense

-Rail

-Medical

-Space

-Telecom

-Industrial

-Test & Measurement

Detailed Drawing

Purchasing of ready-made microwave cable assembly lines provides important benefits:

• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality

Assembly shop capability:

*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking

Product Cataloge:

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
