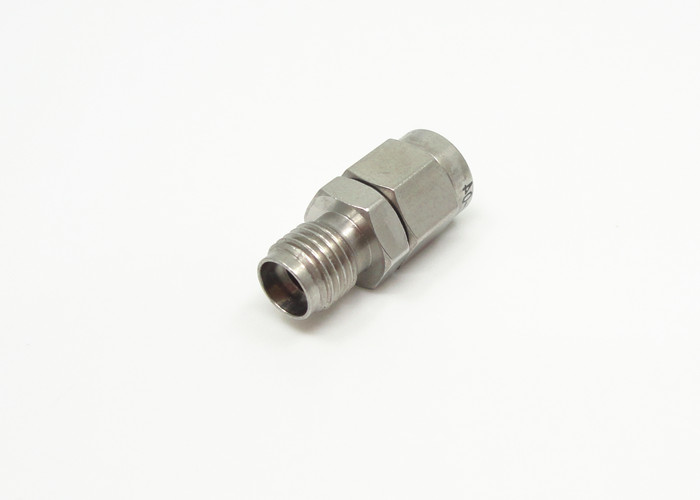

Nickel Plated Millimeter Wave 3.5mm Female to 2.92mm Male MMW
Adapter
K-type millimeter wave connectors, also called 2.92mm MMW connectors are
one of the most common millimeter wave connectors with broad
frequency range upto 40GHz. They can be mated with SMA and 3.5mm
connectors.
These K-type (2.92mm) MMW connectors adopt air interface, which
makes them small in size, light in weight and very reliable in
connection, etc.
3.5 series is a common used millimeter wave connector, the
frequency is 33 GHZ (up to 36 GHZ), use air interface can mate and
interchange with SMA series, K series connectors, With advantages
of great bandwidth, high reliability, it is widely used in
microwave measurement and millimeter wave devices.
The high precision 50 ohm coaxial 3.5mm to 2.92mm adaptor for
general-purpose RF and microwave use. These high performance
connectors are used in a wide variety of test and measurement
settings ranging from cellular to satellite communications for the
proper matching of equipment and cable interconnect. The connectors
are constructed from a durable stainless steel and are designed to
withstand repeated use. They feature an air dielectric with a
loss-loss plastic center conductor support.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio
VSWR | ≤1.25 |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Features:
• The 3.5mm to 2.92mm RF adaptor is a precision microwave
connectors.
• Stainless steel construction
• Superior electrical performance to 40 GHz
• Connectors in End Launch and Flange options
• Adapters to 2.4mm, SMP, 2.92mm, SMA.
• Connector mating interface per MIL-STD-348
• Great for applications that require high frequency transmission
• Excellent reliability where extreme shock & vibration conditions
are experienced
• Quick connect cable plugs and adapter
Application:
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Research centres
* Satellite communications
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us
with your details.
