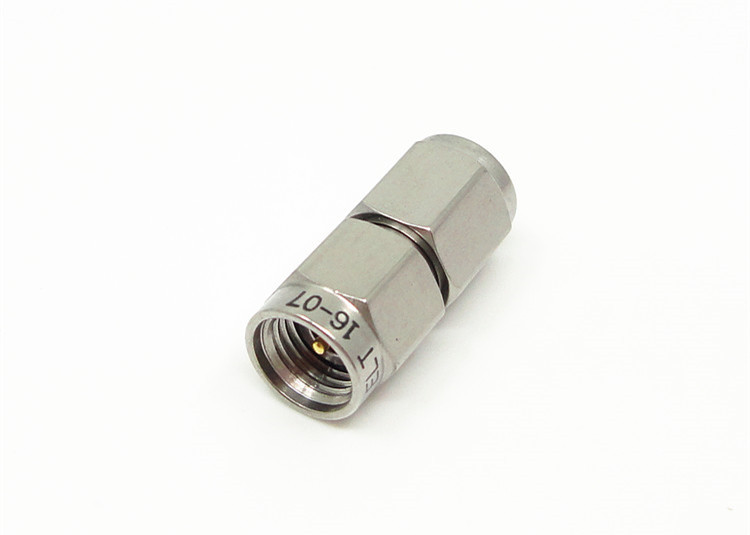

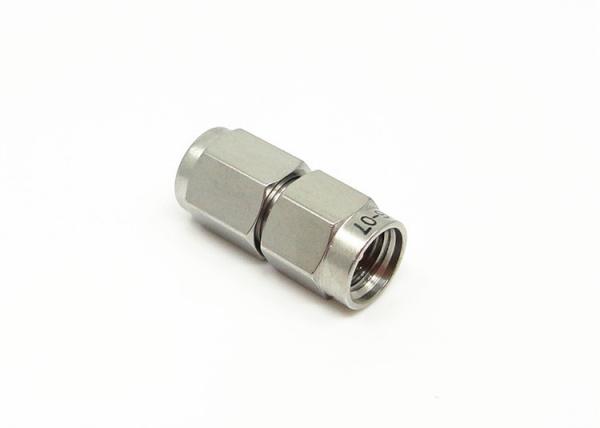

Nickel Plated Straight 2.92mm(K) Male to 2.4mm Male Millimeter Wave MMW Adapter
K-type millimeter wave connectors, also called 2.92mm MMW connectors, are
one of the most common millimeter wave connectors with broad
frequency range upto 40GHz. They can be mated with SMA and 3.5mm
connectors.
These K-type (2.92mm) MMW connectors adopt air interface, which
makes them small in size, light in weight and very reliable in
connection, etc.
2.4mm Type product is a high performance millimeter wave connector, the
frequency is 50 GHz, use air interface threaded connect,with
characteristics of small volume, light weight, high use frequency,
reliable connect, it is widely used in high frequency microwave
measurement and millimeter wave devices.
The high precision 50 ohm coaxial 2.92mm to 2.4mm adaptor for
general-purpose RF and microwave use. These high performance
connectors are used in a wide variety of test and measurement
settings ranging from cellular to satellite communications for the
proper matching of equipment and cable interconnect. The connectors
are constructed from a durable stainless steel and are designed to
withstand repeated use. They feature an air dielectric with a
loss-loss plastic center conductor support.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio
VSWR | ≤1.25 |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Features:
• The 2.92mm to 2.4mm RF adaptor is a precision microwave
connectors.
• Stainless steel construction
• Superior electrical performance to 50GHz
• Connectors in End Launch and Flange options
• Adapters to 2.4mm, SMP, 2.92mm, SMA.
• Connector mating interface per MIL-STD-348
• Great for applications that require high frequency transmission
• Superior electrical performance up to 50GHz
• Excellent reliability where extreme shock & vibration conditions
are experienced
• Quick connect cable plugs and adapter
Application:
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Research centres
* Satelite communications
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
NOTE:
We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us
with your details.
