Nail Head Glass To Metal Seal Connectors DC feedthrus for Hermetic Packaging

Nail Head Glass To Metal Seal is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.

The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Specification:

Product Name	Nail Head Glass To Metal Seal
Impedance	DC
Type	Single
Pin Tip Options	Nail Head
Plate	Gold plated
DC Feedthrus	Kovar 4J29
Glass material Glass Color	7052 or 7070 Green or White
VSWR	NA
Hermeticity Leak Rate	< 1.01325 X 10-3 Pa*cm3/s < 1X 10-9 mbar*l/s < 1 x 10-9 ccHe/sec @ 1 atm
Withstand Voltage	≥300V
Insulation Resistance	≥2000MΩ for single pin, ≥1000MΩ for multi-pin,
Operating temperature	-65℃~+260℃

Features:

-Hermetic
-Stable quality and high reliability
-Small size
-lightweight
-Gold wire bonding, soldering and mating method for choice

Application:
Wide usage range of electronics packages, electronics countermeasures, missiles, satellites, radar and other in military, aerospace, avionics, automotive and other filed. It can be used with SMA, millimeter wave products.

Advantages:

-Strict tolerance control
-Standard and custom design for choice.
-Military Grade with 1.27um gold plated
-Large stocks for standard sizes
-Fast delivery for custom products
-High cost-effective products and services

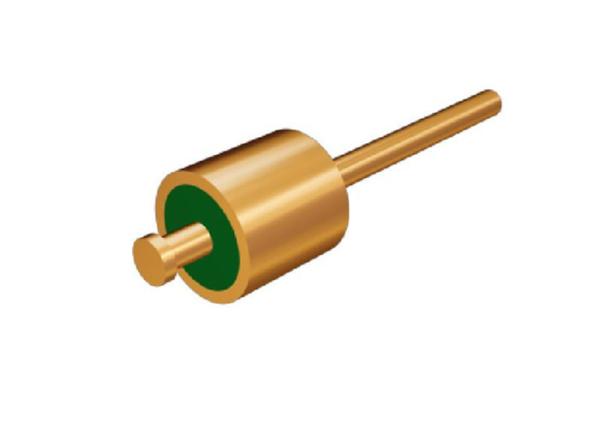

Detailed Image

Unit: mm

NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.
