WR90 WR75 WR42 SMA Female Waveguide to Coaxial Adapter 8.15 GHz to 22 GHz

Waveguide to Coaxial Adapter produced by Xi'an Elite Electronic Industrial Co., Ltd. are divided into two structures, right angle and end lauch. For coaxial end of waveguide adapters, we can provide N type, TNC, SMA, 3.5mm, 2.4mm, SMP, SSMP and many other types. Their frequencies range from 6.5GHz to 50GHz. Our waveguide models range from BJ84 to BJ400 (wr112-wr22). In addition, we can offer custom coaxial waveguide adapters in accordance with customers' special requirement.

Specification:

Product Name	Waveguide to SMA Coaxial Adapters
Coaxial type	SMA
Waveguide Size	WR112 WR90 WR75 WR62 WR51 WR42
Body Style	End Launch, Right Angle
Frequency Range	8.15-22GHz
SMA Impedance	50 Ohm
VSWR	1.25

Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

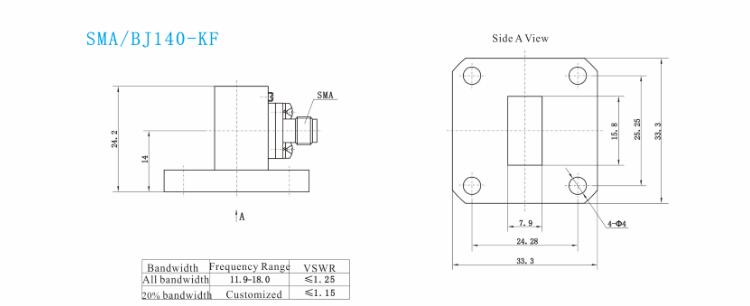

Detailed Drawing(mm):

List of Waveguide to SMA Coaxial Adapters:

Model Number	Description	Note
SMA/BJ100-KF	WR90 to SMA female right angle adapters	BJ100=WR90
SMA/BJ100-KF1B	WR90 to SMA female end launch adapters
SMA/BJ100A-KF	WR90A to SMA female right angle adapters with hermetic ring	BJ100A=WR90A
SMA/BJ100A-KF1	WR90A to SMA female right angle adapters
SMA/BJ120-KF	WR75 to SMA female right angle adapters with height 25.8mm	BJ120=WR75
SMA/BJ120-KF1	WR75 to SMA female end launch adapters
SMA/BB120B-KF	WR75B to SMA male right angle adapters with height 30mm	BJ120B=WR75B
SMA/BJ140-KF	WR62 to SMA female right angle adapters	BJ140=WR62
SMA/BJ140-KF1	WR62 to SMA female end launch adapters
SMA/BJ180-KF	WR51 to SMA female end launch adapters	BJ180=WR51
SMA/BJ180-KF1A	WR51 to SMA female end launch adapters

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR18	39.2~59.6
BJ620	WR14	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112

Waveguide to Coax Adapter-ELT 2024.pdf

NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
