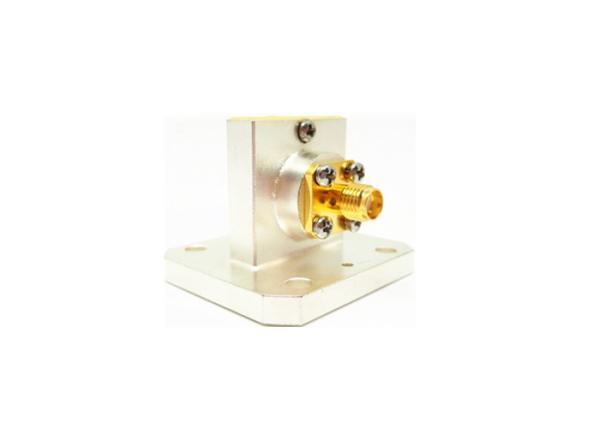

WR90 Waveguide to Coax Adapter SMA Right Angle Launch Adapters

The coaxial waveguide adapters produced by our company are divided into two structures, orthogonality (Right Angle) and termination (End Lauch). For coaxial end of waveguide adapters, we can provide N type, TNC, SMA, 3.5mm, 2.4mm, SMP, SSMP and many other types. Their frequency range from 6.5GHz to 70GHz. Our waveguide models range from BJ84 to BJ400 (wr112-wr22). In addition, we can offer custom coaxial waveguide adapters in accordance with customers’ special requirement.

Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc. Please download Catalog- Waveguide to Coaxial Adapters.pdf

Specification:

Product Name	Waveguide to SMA Coaxial Adapters
Coaxial type	SMA
Waveguide Size	WR90
Body Style	Right Angle
Frequency Range	8.15-12.5GHz
SMA Impedance	50 Ohm
VSWR	1.25

Detailed Drawing:

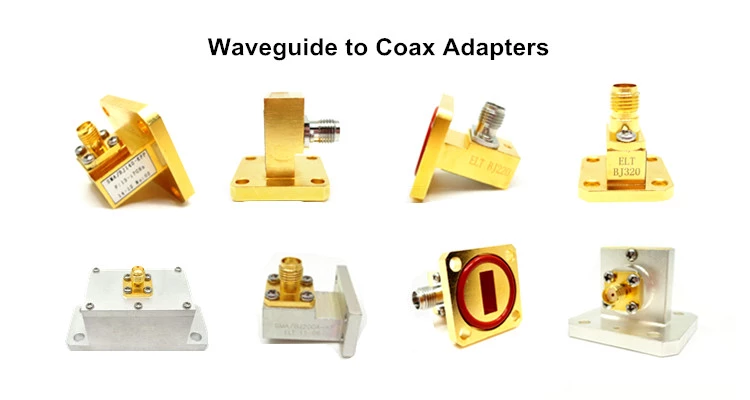

List of Waveguide to SMA Coaxial Adapters

Model Number	Description	Note
SMA/BJ100-KF	WR90 to SMA female right angle adapters	BJ100=WR90
SMA/BJ100-KF1B	WR90 to SMA female end launch adapters
SMA/BJ100A-KF	WR90A to SMA female right angle adapters with hermetic ring	BJ100A=WR90A
SMA/BJ100A-KF1	WR90A to SMA female right angle adapters
SMA/BJ120-KF	WR75 to SMA female right angle adapters with height 25.8mm	BJ120=WR75
SMA/BJ120-KF1	WR75 to SMA female end launch adapters
SMA/BB120B-KF	WR75B to SMA male right angle adapters with height 30mm	BJ120B=WR75B
SMA/BJ140-KF	WR62 to SMA female right angle adapters	BJ140=WR62
SMA/BJ140-KF1	WR62 to SMA female end launch adapters
SMA/BJ180-KF	WR51 to SMA female end launch adapters	BJ180=WR51
SMA/BJ180-KF1A	WR51 to SMA female end launch adapters

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1

NOTE:
We have over 10,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
