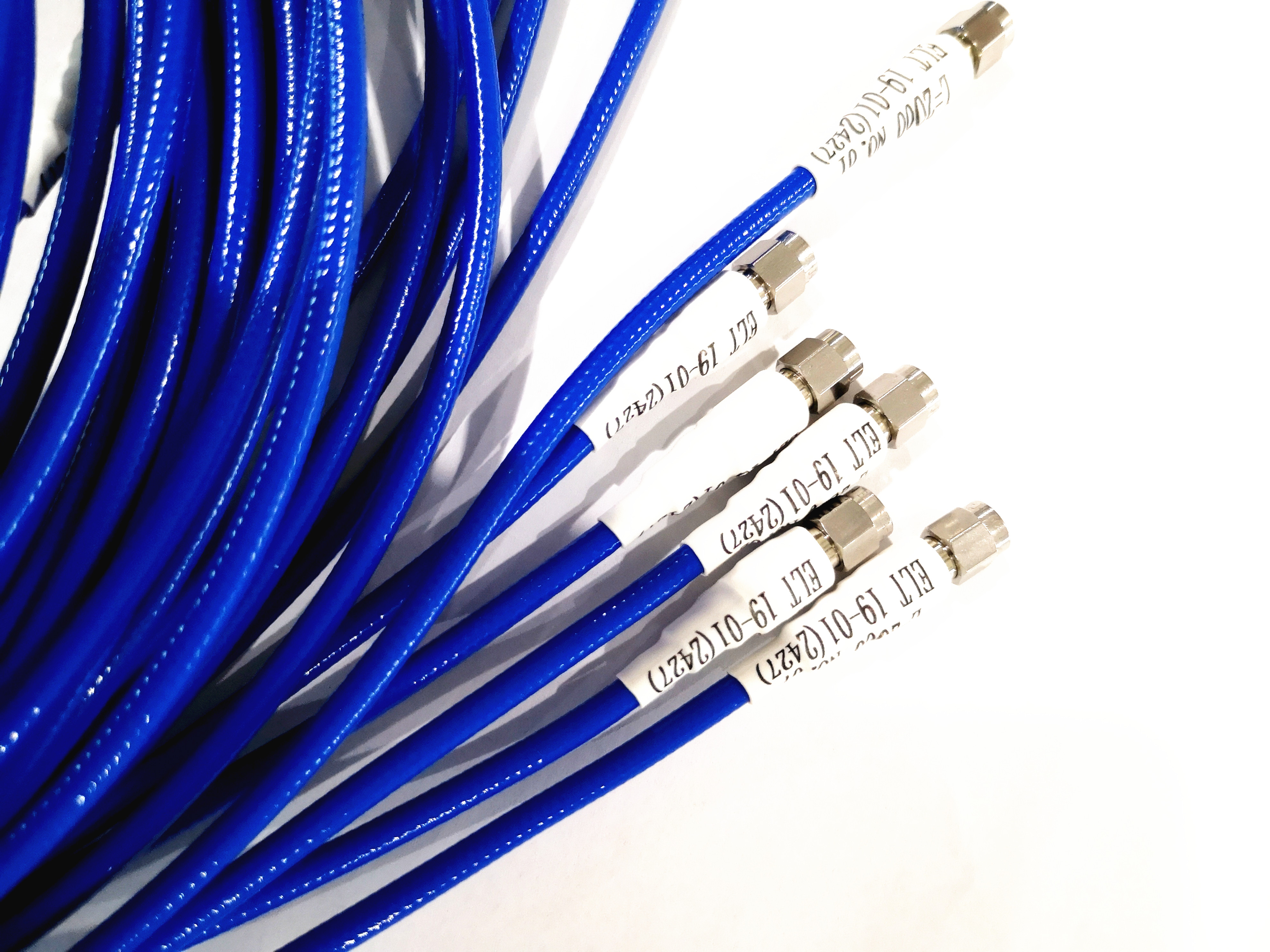

Nickel Plated SMA Male to SMA Male RF Coaxial Connector RF Cable
Assemblies L=2000mm
Category: SMA to SMA RF Cable Assembly
Impedance: 50ohm
Convert : SMA-J416G-1/SMA-J416G-1
Lenght:2000mm
Type: Coaxial, RF Cable
Cable length can be customized according to customer's requirement.
In addition to our standard offering, Elite Electronic also offers
a variety of customized options for these interconnect products,
which include different connector options,higher and lower
frequency coverage, extended environmental testing, etc. Our team
of dedicated engineers can help develop the right solution for your
application needs.
Specifiacation:
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | Connect with solf cable DC~12.4GHz |
| Connect with semi-rigid cable DC~18GHz |
| Rated Voltage | 335VRMS |
| Dielectrics Voltage-resistance | 1000VRMS |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated |
| Elastic Contact | Beryllium bronze Nickel plated |
| Shell and other Metal Parts | Brass Nickel plated |
| Stainless Passivation |
| Crimping Sleeve | Brass Nickel plated |
| Insulators | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500 cycles |
| Tightening torque of connection | 0.79－1.13N .m |
Application:
* Broadband
* Instrumentation
* Antennas
* Telecom
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
Product Detail:
Features
•0-26.5 GHz
•Standard brass, non-magnetic brass and stainless steel material
options
•Patented High Frequency and Self Fixture end launch connectors
•Quick connect cable plugs and adapter
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Advantages:
√ Rich selection of connector
(BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),
more than 500
experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 20 years
√ Have long and Rich cooperation experience with national project
components supply
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK
ect. with short delivery
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us
