Single Channel Waveguide Microwave Rotary Joint Coaxial Low Loss

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	ELT-RJ-1LSMA3
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	1,000 Pieces Per Month
Delivery Time :	Within 5 weeks

Add to Cart

Product Details
Company Profile

Single Channel Waveguide Microwave Rotary Joint Coaxial Low Loss

Microwave rotary joint is essential part to guarantee the normal work of microwave rotary antenna. When the antenna is constantly rotating, the microwave signal is transmitted from the transmitter to the antenna, or from the antenna to the receiver, the azimuth and pitching search is realized.

Our company can design and produce various single channel coaxial rotary joint, multichannel rotary joint, MMW rotary joint, product with characteristics of small standing wave, low loss, small phase fluctuation, high integration, etc, it’s widely used in microwave devices of radar, navigation, surveillance,etc.

Specification

Working temperature	-40-+70°C
Frequency	DC-26GHz
Input and output	SMA-K/SMA-K
VSWR	≤1.3
VSWR fluctuation	0.1
Insertion loss	0.6dB
Insertion loss fluctuation	0.1dB
Speed	10 revolutions per minute

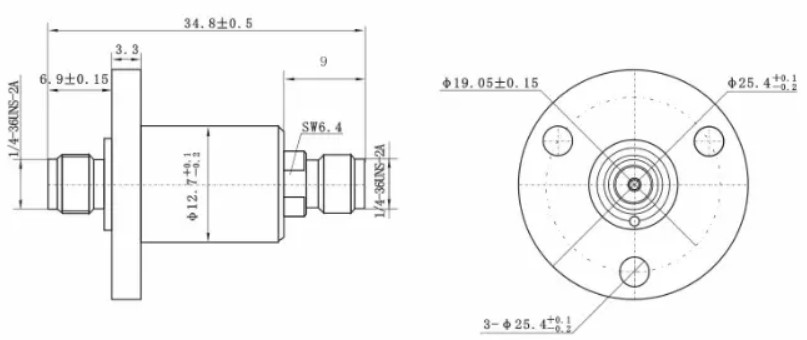

Detailed Drawing

Product Cataloge

RF Cable Assemblies

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF Connector

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
