Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated

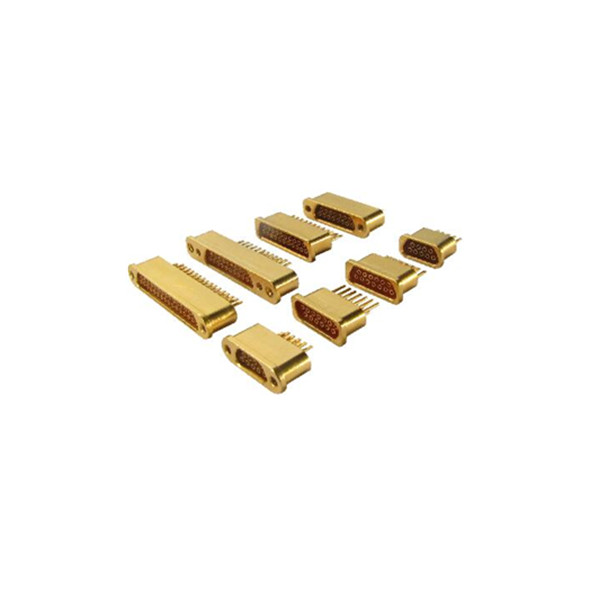

J30JM micro rectangular female connectors are hermetic sockets with dielectric in glass and contact spacing 1.27mm. For end termination styles, they can be applicable to wires with sectional area Φ0.1-0.15mm2, or soldered onto PCB directly. These connectors are designed exclusively for the conditions where hermetic sealing is requested. They have characteristics of small size, light weight, reliable connection, excellent electromagnetic shielding effectiveness, vibration and shock resistance etc.

NOTE:

1, The common connectors include 6 subfamilies: crimp contact connectors, solder contact connectors, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.

2, J30J-9TJL, the "TJ" means "Plug"

Specification:

Rated voltage: 100V

Current Rating: 3A

Hermecity: ≤1.01 X 10E-09 Pa·m³/s
Contact Resistance: ≤10MΩ
Insulation Resistance: ≥ 1000 MΩ
Dielectric Withstand Voltage: 300V

Durability: 500 cycles
Environmental Temperature: -55℃ ~ + 125℃
Relative Humidity: +40℃ up to 95%
Vibration: 10Hz~ 2000Hz 196m/S²
Total acceleration RMS: 23.1G
Impact: 735m/S²

Applications:

- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Navigation systems
- Research centers
- Medical applications
- Cable to Cable
- Board to Cable
- Surface Mount (SMT) Board to Cable

Features:

-- Hermetically Sealed by Sintered Glass
-- Contact Spacing: 1.27 mm (0.05")
-- Wire size: 0.1-0.15 mm²
-- 1, 2-raw options
-- 9-37 contacts
-- Space and weight saving.
-- Excellent resistance to shock and vibration.
-- The end can be soldered directly to PCB

Types:

- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series

NOTE:
We can supply over 1000 types of Miro-D J30J Series connectors, if it is not match with your request,pls contact us.
