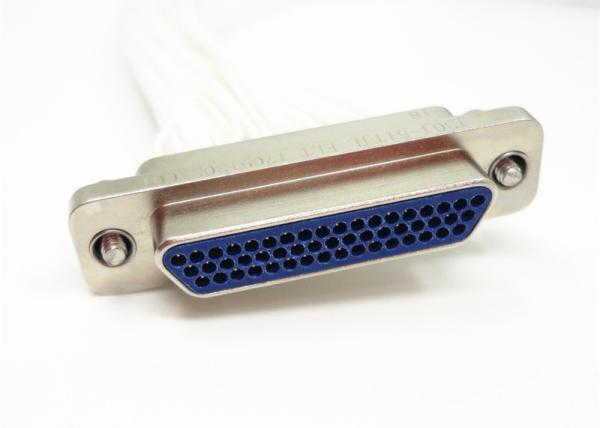

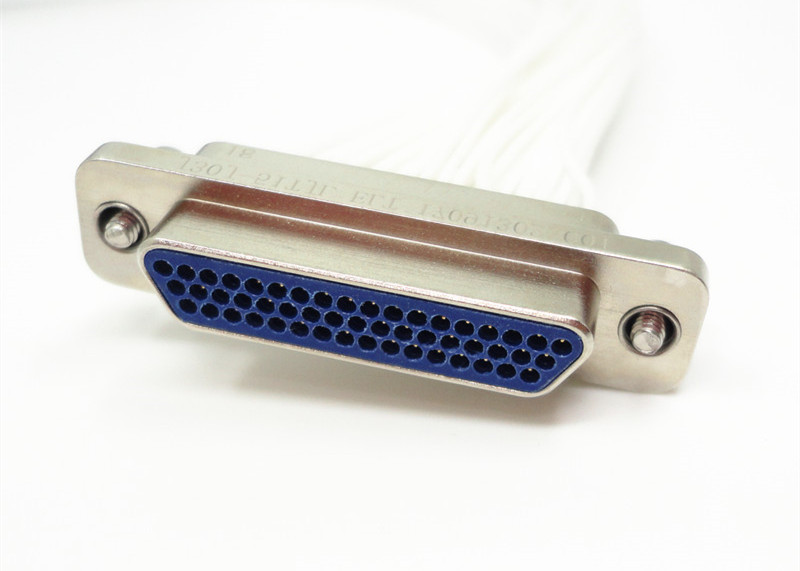

Crimp 51 Pin Contact Micro-D Rectangular J30J Series with 1000mm
Wire length
The Micro-D rectangular J30J series connectors is equivalent to the
American MDM series products etc, the shell is made of aluminum
alloy, the contact space is 1.27mm. It's apply to the wire core
section area of 0.1-0.15mm squared. This product performance comply
with GJB2446A ( general specification for micro-miniature polarized
shell rectangular electrical connectors),it is equivalent MIL-DTL-83513, which is divided to common(shell) and improved(shell) . With the
small install space, light weight , reliable connect, excellent
electromagnetic scree, good earthquake resistance, etc. It is
widely used in small space required electronic equipment and
apparatus.
Contact Arrangements(Face View of Pin insert) |
NOTE:
The common connectors include 6 subfamilies: crimp contact
connectors, solder contact connectors, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB
W, right angle contact for PCB W-J.
Specification:
| Current Rating | 3A |
| Voltage Rating | 300V |
| Insulation Resistance | ≥ 5000 MΩ |
| Durability | 500 cycles |
| Dielectric Withstand Voltage | 800 |
| Environmental Temperature | -55℃ ~ + 125℃ |
| Relative Humidity | up to 95% at +40℃ |
| Vibration | 10Hz~ 2000Hz 196m/S² |
| Total acceleration RMS | 23.1G |
| Impact | 735m/S² |
| Model No. | A | B | C |
| J30J-9TJ | 19.6 | 14.35 | 7.6 |
| J30J-15TJ | 23.5 | 18.2 | 7.6 |
| J30J-21TJ | 27.4 | 22 | 7.6 |
| J30J-25TJ | 29.8 | 24.5 | 7.6 |
| J30J-27TJ | 33.6 | 27.3 | 7.6 |
| J30J-33TJ | 37.4 | 32.2 | 7.6 |
| J30J-51TJ | 36.3 | 30.86 | 8.7 |
| J30J-100TJ | 54.8 | 45.72 | 9.7 |
Applications:
- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Navigation systems
- Research centres
- Medical applications
- Cable to Cable
- Board to Cable
- Surface Mount (SMT) Board to Cable
Features:
- 0.635mm,1.27mm,1.91mm contact spacing
- 1, 2, 3 ,4-raw options
- 9-100contacts
- MIL-DTL-83513 qualification
- Straight, right-angle models choice
- Space and weight saving.
- Excellent resistance to shock and vibration.
- Low contact resistance, high current capability, high dielectric
strength.
- Custom designed connectors and cable assemblies.
- The termination style is crimp contact, and the reseau is (row ×
line) 1.27×2.54.
Types:
- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series
NOTE:
We can supply over 1000 types of Miro-D J30J Series connectors, if it is not match with your request,pls contact us
