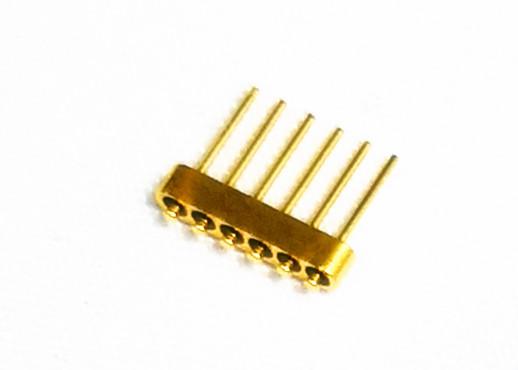

6-pin 1.27um Gold Plated Nail Head Glass To Metal Kovar Headers

Ask Lasest Price
Brand Name :	ELT
Model Number :	ELT-JMC6
Certification :	ROHS ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	30,000,000 pcs per year
Delivery Time :	Within 3 Weeks

Add to Cart

Product Details
Company Profile

6-pin 1.27um Gold Plated Nail Head Glass To Metal Kovar Headers

6-pin 1.27um Gold Plated Nail Head Glass To Metal Headers

Specification:

Product Name	Hermetic Glass to Metal Seals
Impedance	other
Type	6 pins
Rows	1 row
Color	Gold plated
Standard	ASTM B488, Mil-G-45204, AMS2422
Housing and pin material	Kovar 4J29
Glass material Glass Color	7052 or 7070 type or DM308 Green or White
RF Performance	NA
VSWR	NA
Withstand Voltage	≥300V
Hermecity Leak Rate	< 1.01325 X 10^-3 Pacm³/s < 1X 10^-9 mbarl/s < 1 x 10^-9 ccHe/sec @ 1 atm
Insulation Resistance	≥1000MΩ
Operating temperature	-65℃~+260℃

Hermetic Glass to Metal Seals /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.

The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing(ferrule/outer ring) and conductor(pin/contac) is made of Kovar that sintered under high temperature, and the surface is gold plated. The pin has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Hermetic Seal Solder Contact 6-pin Feedthroughs Connector

Features:

-Stable quality and high reliability

-Small size

-lightweight

-Hermetic

-Pin : Gold wire bonding, soldering and mating method for choice

Advantages:

-Military Grade with 1.27um gold plated

-Strict tolerance control

-High cost-effective products and services

-Large stocks for standard sizes

-Fast delivery for custom products

-Standard and custom design for choice.

Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.

Detailed Image

Product List: Catalog-Glass-to-Metal Hermetic Seals.pdf

50Ω RF Single-pin JM Series	Soldering Mating and Bonding choice
50Ω RF Single-pin JM Standard Series	Soldering Mating and Bonding choice
50Ω RF Single-pin JM Non-Standard Series	Soldering Mating and Bonding choice
DC Single-pin JK Series	Soldering and Bonding choice
DC Single-pin JK Standard Series	Soldering and Bonding choice
DC Single-pin JK Non-Standard Series	Soldering and Nail Head Bonding choice
Multi-pin Header JMC Series	1-9 pins with 1-3 rows choice
Custom dimensions	Wide range

NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.
