3 Pins Multi-pin Headers Hermetic Glass To Metal Seal Connectors 0.5mm

Ask Lasest Price
Brand Name :	ELT
Model Number :	MC-244
Certification :	ROHS ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	30,000,000 pcs per year
Delivery Time :	Within 3 Weeks

Add to Cart

Product Details
Company Profile

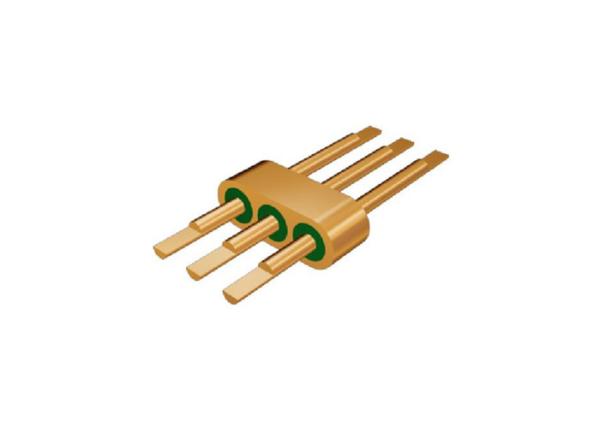

3 Pins Multi-pin Headers Hermetic Glass To Metal Seal Connectors 0.5mm

Hermetic Glass to Metal Seals RF/DC Feedthroughs /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.

The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.Catalog-Glass-to-Metal Hermetic Seals-ELT.pdf

Hermetic Seal Solder Contact 6-pin Feedthroughs Connector

Specification:

Product Name	Glass to Metal Multi-pin Headers
Impedance	other
Type	3 pins
Rows	1 row
Color	Gold plated
Housing and pin material	Kovar 4J29
Glass material Glass Color	7050 or 7070 type or DM308 Green or White
Freqecncy Range	NA
VSWR	NA
Withstand Voltage	≥300V
Hermecity Leak Rate	<1.01325 X 10^-3 Pacm³/s < 1X 10^-9 mbarl/s < 1 x 10^-9 ccHe/sec @ 1 atm
Insulation Resistance	≥2000MΩ for single pin, ≥1000MΩ for multi-pin,
Operating temperature	-65℃~+260℃

Features:

-Small size

-lightweight

-Hermetic

-Stable quality and high reliability

-Inner conductor: Gold wire bonding, soldering and mating method for choice

Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.

Advantages:

-Military Grade with 1.27um gold plated

-Strict tolerance control

-Standard and custom design for choice.

-High cost-effective products and services

-Large stocks for standard sizes

-Fast delivery for custom products

Outline Drawing and Picture

Unit:mm

Product List:

50Ω RF Single-pin M Series	Soldering Mating and Bonding choice
50Ω RF Single-pin M Standard Series	Soldering Mating and Bonding choice
50Ω RF Single-pin M Non-Standard Series	Soldering Mating and Bonding choice
DC Single-pin K Series	Soldering and Bonding choice
DC Single-pin K Standard Series	Soldering and Bonding choice
DC Single-pin K Non-Standard Series	Soldering and Nail Head Bonding choice
Multi-pin Header MC Series	1-9 pins with 1-3 raws choice
Custom dimensions	Wide range

NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.
