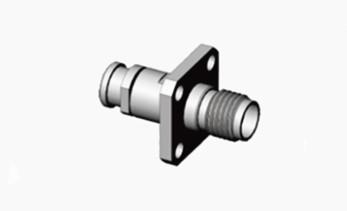

    K2.92 Female 4-hole Flange Stainless Steel RF Coax Connector for MF30/MF30A/TLL40-1130A Cable

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : K-KF130G
    Certification : ISO-9001-2015
    Price : Negotiable
    Delivery Time : Within 5-7 workdays(for stocks)
    • Product Details
    • Company Profile

    K2.92 Female 4-hole Flange Stainless Steel RF Coax Connector for MF30/MF30A/TLL40-1130A Cable

    K2.92 Female 4-hole Flange Stainless Steel RF Coax Connector for MF30/MF30A/TLL40-1130A Cable


    The BNC connector, also known as the Bayonet Neill-Concelman, is a miniature quick connect/disconnect RF (Radio Frequency) connector designed for use with coaxial cables. It features two bayonet lugs on the female connector, allowing for a quick connection by only rotating the coupling nut a quarter turn. BNC connectors are particularly well-suited for terminating miniature to subminiature coaxial cables, such as RG-58, RG-59, RG-179, and RG-316. These connectors are commonly found in radio, television, and other RF electronic equipment, test instruments, video signals, and were historically popular in 10BASE2 computer networks. BNC connectors are manufactured to match either a 50 ohm or 75 ohm characteristic impedance of the cable. They perform well in lower microwave frequency applications, including monitors, LANs (Local Area Networks), telecommunication devices, and test equipment. Designed according to MIL-C-39012/16-24l standards, these connectors feature a bayonet structure for coupling mating and can be interchangeably used with internationally available counterparts. They offer rapid engagement and disengagement capabilities, making them ideal for connecting coaxial cables in radio equipment and instruments.




    Specification
    Note:The specific data of the model are based on the data in the product specification sheet.

    Electrical Characteristics
    Impedance50 Ohm
    Frequency RangeDC~40GHz
    Rated Voltage250VRMS (Maximum sea-level)
    Dielectrics Voltage-resistance750 VRMS (Maximum sea-level)
    Insulation Resistance≥5000MOhm
    Contact ResistanceOuter conductor≤3.0mOhm
    Center conductor≤2.0mOhm
    VSMR≤1.05+0.005f

    Product Detail:


    Material & Mechanical Characteristics
    Center ConductorMale/PlugBrassGold plated
    Female/SocketBeryllium bronzeGold plated
    Elastic ContactBeryllium bronzeNickel Plated
    Shell / HousingBrass,stainless steelGold plated/Passivation
    InsulatorsPEI/PLF
    Sealing RingSilicone Rubber
    Durability500 cycles

    Mating Cycles500Cycles
    Mating Torque0.79N.m~1.13N.m
    Temperature-55°C~+125°C


    Features:
    Structural Features
    Size and Design: The outer conductor diameter of the K2.92 connector is 2.92mm, with a design characteristic impedance of 50Ω. Its structural design allows it to maintain high-performance transmission effects in extremely small sizes. Due to its small size and light weight, the K2.92 connector has obvious advantages in application scenarios that require space saving and weight reduction .
    Compatibility: The K-type connector has a similar interface design to SMA and 3.5mm connectors and can be interchanged with them. Although these three connectors have consistency in the dimensions of their male and female parts, allowing for interconnection without transitions, long-term use of different connectors interchangeably may affect transmission performance and test accuracy, and should be avoided as much as possible .


    Application:

    Testing Instruments
    Precision Measurement: In the field of testing instruments, especially millimeter wave test equipment, the application of the K2.92 connector is very widespread. Its high precision and high-frequency characteristics make it the preferred connection solution for precision measurement and data analysis .
    Laboratory Use: Many laboratories use K2.92 connectors for the construction and connection of experimental equipment because of their stable performance and convenient operation .


    NOTE:
    We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
