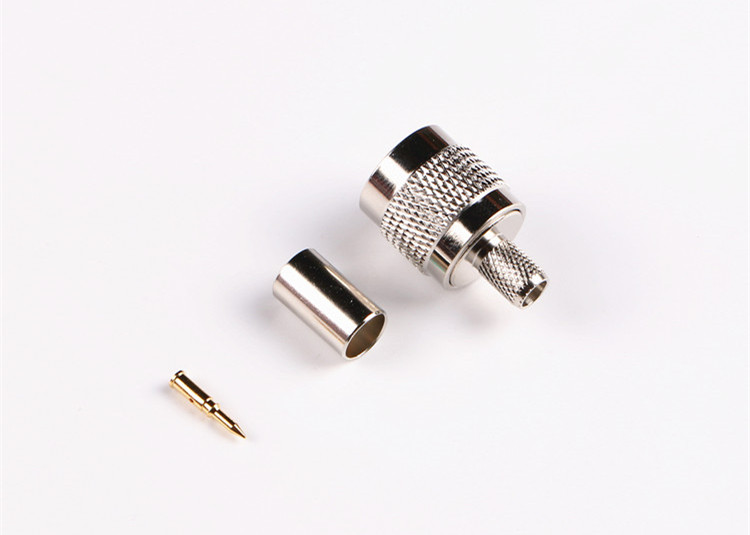

Straight TNC Male Plug RF Coaxial Crimpping Connector with Nickel Plated

Mechanical Specification

Detailed Drawing

Features:

1, TNC series RF Electronic connector is designed as a threaded version of BNC connector.

2, TNC RF connectors features screw threads for mating. RF TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating fromDC-11ghz

3, Two types of TNC connectors:standard and reverse polarity

4, These low cost china supplier factory RF connector typically utilize die cast and molded components.

5, While performance will not be equal to the industrial or military grade products, these RF crimp connectors are ideal for use on a varity of commercial applications

6,The TNC series products are a kind of whorl joining, it has work width frequently,join reliable.

Application:

* Cellular mobile telephones

* Instrumentation

* Base Station

* Network

* Radar

* Telecommunications

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
