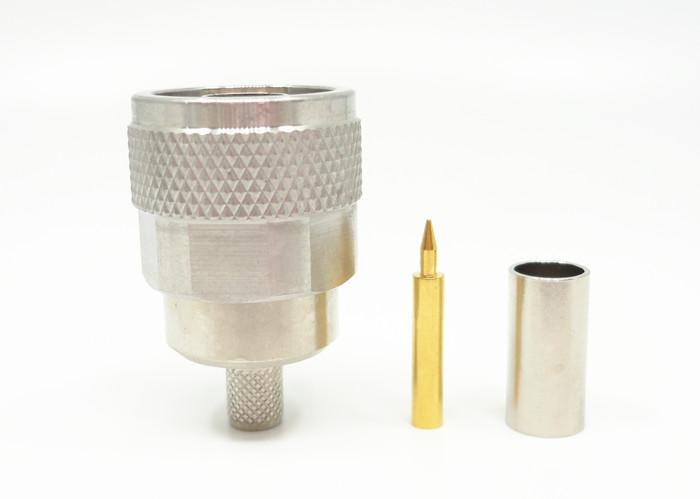

Male Plug 50Ohm Coax N Connector N Type Male Connector

Male Plug 50Ohm N Type RF Connector Straight Threaded Bulkhead

N type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11GHz typical frequency range. Our frequency range can be up to 18GHz. They are applicable to different types of RF cables and commonly adopted in aviation, radar, microwave and digital communications, test and measurement instrument etc.
We can also customize various type-N connectors and adapters as per customers' different requirement. No matter what you need is straight or right angle, flange mount or bulkhead mount.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~11GHz(Max.18GHz)
Rated Voltage	1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance	1500VRMS*(Max.Sea Level)
Insulation Resistance	≥5000MΩ
Center Resistance	Outer conductor	≤0.5mΩ
	Center conductor	≤1.5mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Brass, Gold plated
	Female	Phosphor Bronze, Gold plated
Resilient Contact	Phosphor Bronze	Nickel Plated Passivated
Shell / Housing	Brass Stainless steel	Gold plated Passivation
Cable Clamp	Brass	Nickel Plated
Insulator	PTFE
Gasket	Silicone Rubber
Durability	500 Cycles

Features

Gold plated

Sub-miniature

DC to 40GHz

Compact size

Push-on or snap coupling

Full detent, Limited detent and Smooth bore

PCB & cable mount connector

Male and Female, Straight and Right Angle choice

Cable mount versions for both flexible and semi-rigid cable Materials

Normal type and hermetic, Flange mount & Thread-In Mount choice

Detailed Drawing

Male Plug 50Ohm Coax N Connector N Type Male Connector

Applications

* Computer/LANs

* Mobile communication

* Base Station

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system

* Mobile communication

Product Cataloge

RF Adapter

RF Cable Assemblies

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Waveguide to Coaxial Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Packaging & Delivery

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
