    4 Holes Flange Mount N Type RF Connector Customized Design Long Lifetime

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : N
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1,000,000 Pieces Per Month
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

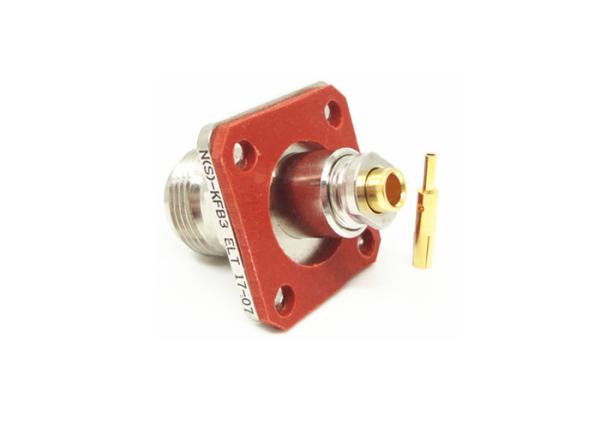

    4 Holes Flange Mount N Type RF Connector Customized Design Long Lifetime

    4 Holes Flanges Mount N Type RF Connector Female Nickel Plated


    N type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11 GHz typical frequency range. Our frequency range can be up to 18 GHz. They are applicable to different types of RF cables and commonly adopted in aviation, aerospace, radar, microwave and digital communications, test and measurement instrument etc.
    We can customize various type-N connectors and adapters as per customers' different requirement. No matter what you need is straight or right angle, flange mount or bulkhead mount.



    Specification


    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~11GHz(Max.18GHz)
    Rated Voltage1000VRMS*(Max.Sea Level)
    Dielectrics Voltage-resistance1500VRMS*(Max.Sea Level)
    Insulation Resistance≥5000MΩ
    Center ResistanceOuter conductor≤0.5mΩ
    Center conductor≤1.5mΩ
    VSWR≤1.3
    Material & Mechanical Characteristics
    Center ConductorMaleBrass,

    Nickel Plated

    FemalePhosphor Bronze,

    Nickel Plated

    Resilient ContactPhosphor BronzeNickel Plated
    Shell / HousingBrass, Stainless steel

    Nickel Plated

    Cable ClampBrassNickel Plated
    InsulatorPTFE
    GasketSilicone Rubber
    Durability500 Cycles

    Detailed Drawing

    4 Holes Flange Mount N Type RF Connector Customized Design Long Lifetime



    Applications:

    * Computer/LANs

    * Instrumentation

    * Base Station

    * Automotive

    * Jump line join

    * Basic facility

    * Radio, TV aerial system

    * Mobile communication

    * Outdoor facilities

    * Radar, microwave

    * Telecommunications



    Product Cataloge:

    RF Adapter
    RF Cable Assemblies
    Glass-to-metal Hermetic Seals
    J30J Series Connector
    Microwave Rotary Joints
    Waveguide To Coaxial Adapter
    SMA/SSMA RF Connector
    SMP/SSMP RF Connector
    MCX/MMCX RF Connector
    TNC RF Connector
    N Type RF Connector
    BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

    Packaging & Delivery:

    * Standard Export Carton
    * According to customers' requirements


    NOTE:
    We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your detai
    ls.
